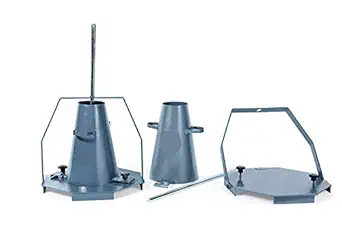

Aumcosmic Slump Cone Test Apparatus Testing Equipment Base and Rod Set Steel for Cements Concrete

By Brand : Generic

Avg Customer Reviews :

The mould for the test specimen will be in the form of frustum of a cone having the following internal dimensions The mould will be constructed of metal of at least 1.6 mm (16 SWG) thickness and the top and bottom will be open and at right angles to the axis of the cone. The mould will have a smooth internal surface. It will be provided with suitable foot pieces to a base plate and also handles to facilitate lifting it from the moulded concrete test specimen in a vertical direction as required by the test. The mould will be provided with a suitable guide attachment. Unit will be provided with cleats & swivel handle. Bottom diameter: 20 cm Top diameter: 10cm Height: 30cm The mould for the test specimen will be in the form of frustum of a cone having the following internal dimensions The apparatus will comprise of a slump cone with handles made of mild steel sheet, a stainless steel tamping rod of 16 mm diameter X 600 mm long, rounded off at one end, with a scale marked on it and a steel base plate with a carrying handle. General Specifications: The apparatus consists of a cup, heating plate, thermometer clip and test flame attachment with swivel joint for passing over liquid surface in the prescribed manner, heater is controlled by means of Energy Regulator for operation on 230 volts, 50Hz, AC single phase Material-Fabricated from Stainless Steel Material Diameter-16 mm in diameter and 600 mm long Shape-Rounded at one end MarkWith-Graduated scale mark on the surface Fabric-Fabricated from mild steel Material
