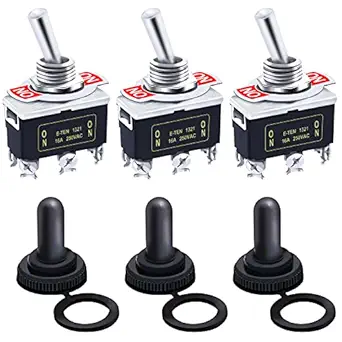

• Special note: If there is any problem with the product received, please contact us immediately for refund or exchange.Product Name: Toggle switch; Country of Manufacture: CHINA;
• Type: ON/ON ; Connector type: DPDT, 6 terminal pin ; Rated Voltage & Current : 16A 250V AC
• Mechanical life: more than 50.000 cycles. Electrical life: more than 10, 000 cycles,Total Size(Approx) : 33x20x57mm/ 1.3\" x 0.76\" x2.2\"(L*W*H)
• Easy to install: Mounting hole diameter: 12mm. Each of the terminals has a machine screw for quick connections, but also easy to be soldered
• Package content: 3 X toggle switch, 3 x Waterproof Cover

• Product Name: Toggle switch; Country of Manufacture: CHINA;
• Type: ON/ON ; Connector type: SPDT, 3 terminal pin ; Rated Voltage & Current : 5A 125V AC 2A 250V AC
• Mounting hole diameter: 6mm ;Rated Voltage & Current : 5A 125V AC 2A 250V AC
• Thread diameter : 0.6Cm/0.24\"; overall size : 3.3 x 1.4 x1.3Cm/1.3\" x 0.55\" x 0.51\"(L*w*t)
• Net weight: 53G; package content: 10 x mini Toggle switches + 10 x Waterproof Cap

• Product Name: Toggle switch; Country of Manufacture: CHINA;
• Type: ON/OFF/ON ; Connector type: SPDT,3 terminal pin ; Rated Voltage & Current : 20A 125V AC 16A 250V AC
• Mechanical life: more than 80,000 cycles. Electrical life: more than 12, 000 cycles?Total Size(Approx) : 3x 1.5x 6cm/ 1.2\" x 0.6\" x2.3\"(L*W*H)
• Easy to install: Mounting hole diameter: 12mm. Each of the terminals has a machine screw for quick connections, but also easy to be soldered
• Package content: 1 X With Black PC Wear-resistant Handle toggle switch

• Modle: E3JK-RR12?Wire Type : 5 Wire;Relection Type: Specular Reflection
• Supply Voltage: 24-240V AC/DC;Load Rating: 3A 250VAC;Detection distance: 6m
• Indicator Light Color: Blue and Yellow; Working temperature: -25-55 degrees;Protection: IP65
• Body Size?50mm x50mm x 18mm/2\" x2\" x0.7\"(L*W*H);Cable Length : 200cm/78.7\";Weight : 120g
• Package Content: 1 x Photoelectric Switch+1 x Mounting Bracket(with screws,nut)+1 x Reflector Panel

• Product Name : Inductive Proximity Switch;Model : SN04-N;Theory : Inductance Sensor
• Country of Manufacture: CHINA; Material: ABS; Wire Type : 3 Wire Type (Brown, Black, Blue)
• Output : Switching Transducer;Output Type : NPN, NO;Switch Appearance Type: Rectangular Type;Voltage : DC 6-36V;; Current Output: 300mA
• Detecting Distance : 4mm;Detect Object : Iron;Size : 3.5 x 1.8 x 1.8cm/1.4'' x 0.7'' x 0.7'' (L*W*H);Cable Length : 1.3m/51.1''
• Net Weight : 60g;Color : Blue, Black;Package Content : 1 x Inductive Proximity Switch

• Product Name: Toggle switch; Country of Manufacture: CHINA;
• Type: ON/OFF ; Connector type: SPST, 2 terminal pin ; Rated Voltage & Current : 5A 125V AC 2A 250V AC
• Mounting hole diameter: 6mm ;Rated Voltage & Current : 5A 125V AC 2A 250V AC
• Thread diameter : 0.6cm/0.24\"; overall size : 3.3 x 1.4 x1.3cm/1.3\" x 0.55\" x 0.51\"(L*w*t)
• Net weight: 53g; package content: 10 x mini Toggle switches + 10 x Waterproof Cap

• Product Name: Toggle switch; Country of Manufacture: CHINA;
• Type: ON/OFF;ON-OFF positions with momentary (ON); Connector type: SPST, 2 terminal pin ; Rated Voltage & Current : 16A 250V AC
• Mechanical life: more than 50.000 cycles. Electrical life: more than 10, 000 cycles,Total Size(Approx) : 30x15x52mm/ 1.2\" x 0.58\" x2\"(L*W*H)
• Easy to install: Mounting hole diameter: 12mm. Each of the terminals has a machine screw for quick connections, but also easy to be soldered
• Package content: 3 X toggle switch, 3 x Waterproof Cover

• Special note: this switch is Momentary Switch 3 Terminal Pin ?One momentary \"on\" position. The other\"on\" position is latching type.Product Name: Toggle switch; Country of Manufacture: CHINA;
• Type: (ON)/OFF/ON ; Connector type: SPDT, 3 terminal pin ; Rated Voltage & Current :16A 250V AC
• Mechanical life: more than 50.000 cycles. Electrical life: more than 10, 000 cycles,Total Size(Approx) : 30x15x52mm/ 1.2\" x 0.58\" x2\"(L*W*H)
• Easy to install: Mounting hole diameter: 12mm. Each of the terminals has a machine screw for quick connections, but also easy to be soldered
• Package content: 3 X toggle switch, 3 x Waterproof Cover

• Special note: this switch is Momentary Switch 3 Terminal Pin ?Product Name: Toggle switch; Country of Manufacture: CHINA;
• Type: (ON)/OFF/(ON) ; Connector type: SPDT, 3 terminal pin ; Rated Voltage & Current : 20A 125V AC 15A 250V AC
• Mechanical life: more than 50.000 cycles. Electrical life: more than 10, 000 cycles
• Easy to install: Mounting hole diameter: 12mm. Each of the terminals has a machine screw for quick connections, but also easy to be soldered
• Package content: 3 X toggle switch, 3 x Waterproof Cover

• Product Name?Inductive Proximity Switch; Wire Type : DC 3 Wire Type (Black, Brown, Blue);Switch Appearance Type : Cylinder Type
• Supply Voltage : DC 6-36V;Current Output : 300mA;Detect Object : Iron
• Model: LJ12A3-4-Z/AY;Theory : Inductive Sensor;Output Type: PNP NC;Diameter of Column Sensor: 12mm;Detecting Distance : 4mm
• Total Size: 6.2 x 2cm/2.4'' x 0.8'' (L*Max. Dia); Cable Length: 1.2m/47'';Net Weight :44g
• External Material : Plastic, Alloy;Package Content : 1 x Inductive Proximity Switch

• Model: NJK-5002C Supply voltage : 5-30VDC; Detection distance :10mm (effective detection distance 0-10mm) ;
• Output : NPN three lines Output state normally open (NO)
• Thread Diameter: 12MM ; thread length: 32MM?Load current :150MA (no more than)
• Detect objects ?metal material ?Product Material: Metal ;parts: Copper plastic components;PBT External leads:1.2 m (standard, others according to customer requirements) ;Output indication:LED (red);
• Net Weight : 50g ;Package Content : 1 x Hall Effect Sensor
