Power & Hand Tools By BDS Maschinen

• MAB 100K Lightweight Magnetic Core Drilling Machine with KEYLESS Tool Holder. Weighing just 9.9 Kg.
• CORE DRILLING: Up to ?32 mm with TCT and HSS core drills. 55 mm cutting depth.
• TWIST DRILLING: Up to ?13 mm with WELDON SHANK twist drill bits only. The KEYLESS tool holder is ideal for using Weldon Shank equipped twist drill bits.
• MOTOR OUTPUT: 1050 Watts, VOLTAGE: 230 Volts AC 50-60 Hz, STROKE: 70 mm, WEIGHT: 9.9 Kg., SPEED GEARS: Single Speed
• FEATURES: KEYLESS Quick Change Tool Holder, Permanent Internal Lubrication, Lightweight, Magnet Indicator, Complete Internal Cabling
• INCLUDED ACCESSORIES: Premium Carry Case, Attached KEYLESS Tool Holder, Two Ejector Pins, Safety Lashing Strap, Accessories Pouch, Guarantee Card, Operating Manual.
• MADE IN GERMANY product from award-winning company BDS Maschinen GmbH, Germany. Winner for the 2023 EXCELLENT BRAND AWARD and PRODUCT BRAND OF THE YEAR AWARD

• The premium MAB 455 magnetic drilling machine, Made in Germany. Equipped with Morse Taper 2 for heavy-duty performance.
• CORE DRILLING: Up to ?50 mm with TCT core drills and ?40 mm with HSS core drills. 55 mm cutting depth.
• TWIST DRILLING: Up to ?18 mm with twist drill bits. With an extra drill chuck and drill chuck adapter use twist drills from 1 to 13 mm in diameter. From 13 to 18 mm diameters, MT2 taper shank drill bits can also be used.
• MOTOR OUTPUT: 1150 Watts, VOLTAGE: 230 Volts AC 50-60 Hz, STROKE: 160 mm, WEIGHT: 13 Kg., MORSE TAPER: MT2, 2 SPEED GEARS: 250-450 rpm and 100-450 rpm
• FEATURES: KEYLESS Quick Change Tool Holder, Permanent Internal Lubrication, Magnet Indicator, Carbon Brush Wear Indicator, Complete Internal Cabling

• 1700 Watt German make motor
• 80 mm max diameter drilling with TCT, 75 mm max diameter drilling with HSS, 110 mm max cutting depth
• 31.75 mm max twist drilling, morse taper: MT3
• Quad speed gear box, RPM: 110, 175, 245 and 385, magnetic size: 110 x 220 x 54 mm, magnetic power: 19500 N
• 24 Kg. weight, 255 mm stroke

• The EKF 452.3 is ideal for chamfering Radius 2.55 chamfer width. Ideal for straight edges, from the outside edge of the profile as well as the inside edges.
• his made in Germany chamfering machine is equipped with 1500 Watt (13.6 Amp) robust motor which has 6000 RPM.
• The EKF 452.3 Radius Chamfering Machine is a lightweight machine which weighs just 4.6 kg. (10.5 lbs.).
• Due to its handy, compact design, the machine can be used on straight edges, internal and external radii and for drill holes from diameter 22 mm.
• The fine adjustment allows slight chamfers for deburring up to the preparation of welding seams.

• The premium MAB 465 magnetic drilling and tapping machine, Made in Germany. Equipped with two speed gearbox for heavy-duty performance.
• CORE DRILLING: Up to ?50 mm with TCT core drills and ?40 mm with HSS core drills. 55 mm cutting depth.
• TWIST DRILLING: Up to ?18 mm with WELDON SHANK twist drill bits. The Direct industrial tool holder is ideal for using Weldon Shank equipped twit drill bits.
• TAPPING: Up to ?M16 thread cutting with WELDON SHANK machine taps. The Direct industrial tool holder is ideal for using Weldon Shank equipped machine taps
• MOTOR OUTPUT: 1150 Watts, VOLTAGE: 230 Volts AC 50-60 Hz, STROKE: 160 mm, WEIGHT: 13 Kg., 2 SPEED GEARS: 50-250 rpm and 100-450 rpm
• FEATURES: Variable Speed Control, Permanent Internal Lubrication, Full Wave Control Electronics, Magnet Indicator, Overheating Protection, Reversible Motor, Carbon Brush Wear Indicator, Complete Internal Cabling
• INCLUDED ACCESSORIES: Premium Carry Case, KEYLESS Tool Holder, Two Ejector Pins, Safety Lashing Strap, Accessories Pouch, Guarantee Card, Operating Manual.
• MADE IN GERMANY product from award-winning company BDS Maschinen GmbH, Germany. Winner for the 2023 EXCELLENT BRAND AWARD and PRODUCT BRAND OF THE YEAR AWARD

• Extremely compact: only 180 mm (7 3/32'') tall.
• 35 mm diameter drilling, 30 mm cutting depth with annular cutters
• 13 mm diameter twist drilling with Weldon shank tools
• Ideal for drilling in extremely confined spaces.
• Horizontal magnetic core drilling machine with an angular gearbox.
• New! Integrated LED Spot Lightfor more visibility and precise drilling.
• New enhanced grip provides a superior grip.
• 1080 Watt brand new motor with 450 RPM
• Weighs only 11 kg. Brand new angular gearbox
• Designed in germany by BDS Maschinen

• 50 mm Diameter Core Drilling. 55 mm Cutting Depth Capacity.
• Morse Taper 2 machine. Twist drilling up to 18 mm diameter.
• 1150 Watt Powerful German Tech Motor.
• Two Speed Gearbox. 250 RPM and 450 RPM.
• 13 Kg. Weight. 160 mm Stroke. Metal Carry Case.
• 6 Months International Warranty.
• Designed in Germany at our headquarters in M?nchengladbach, NRW, Germany.
• Magnetic Core Drilling and Twist Drilling Machine.
• MT 2 Industrial Arbor with 19 mm Weldon Shank.
• 160 mm Stroke. Power Magnet. Robust Sliding System.

• 35 mm Diameter Core Drilling. 55 mm Cutting Depth Capacity.
• 13 mm Diameter Twist Drilling.
• 1050 Watt Powerful Motor. Single Speed Gearbox. 450 RPM.
• 12 Kg. Weight. 160 mm Stroke.
• 6 Months International Warranty.
• Designed in Germany by BDS Machines

• 1100 Watt German make motor
• 30 mm chamfer width, 15 - 60 continuous angle adjustment
• automatic feed, 2750 RPM speed,
• 50 Kg. weight

• The Worlds strongest Magnetic Drilling & Tapping Machine, MAB 1300. Made in Germany. Heavy Duty Magnetic Drilling Tapping Machine.
• CORE DRILLING: Up to ?130 mm with TCT core drills and ?130 mm with HSS core drills. 110 mm cutting depth.
• TWIST DRILLING: Up to ?45 mm with twist drill bits. MT4 taper shank drill bits can be used.
• TAPPING: Up to ?M42 thread cutting with machine taps. Ideal for Blind Hole and Threough Hole Tapping
• REAMING: Up to ?50 mm and COUNTERSINK: Up to ?80 mm
• MOTOR OUTPUT: 2300 Watts, VOLTAGE: 230 Volts AC 50-60 Hz, STROKE: 310 mm, WEIGHT: 51 Kg., MORSE TAPER: MT4, 4 SPEED GEARS: 30-80 rpm, 50-120 rpm, 130-350 rpm & 210-550 rpm
• FEATURES: Power Assist Servo Drill feed, Permanent Internal Lubrication, Full Wave Control Electronics, Magnet Indicator, Overheating Protection, Reversible Motor, Carbon Brush Wear Indicator, 3 Coil Magnet
• INCLUDED ACCESSORIES: Premium Carry Case on Wheels, Four Ejector Pins, Safety Lashing Strap, Ejector Drift, Bushing ZAP 200 from Weldon 32 mm to 19 mm, Three offset screwdriver, Accessories Pouch, Guarantee Card, Operating Manual.
• MADE IN GERMANY product from award-winning company BDS Maschinen GmbH, Germany. Winner for the 2023 EXCELLENT BRAND AWARD and PRODUCT BRAND OF THE YEAR AWARD

• 830 Watt German make motor
• 35 mm max diameter drilling, 55 mm max cutting depth, 23 mm max twist drilling
• Single gear box, min 290 and max 575 RPM, Magnetic size:90 x 160 x 60 mm
• Magnetic power: 8000 N, Morse Taper: MT2
• 17.5 Kg. weight, 160 mm stroke

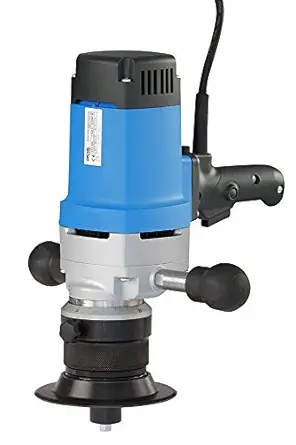

• 2300 Watt German Motor
• Seamless Electronic speed regulation (1600 -3000 min-1) with full wave control electronics
• Chamfer width: 15 mm and Chamfer angle: 45
• 10.2 Kg. Delivered in Premium carry case (Made in Germany)
• 1 Arbour milling cutter (ZFR 645) with 10 carbide insert (SHM 900)
