Test, Measure & Inspect By D YEDEMC

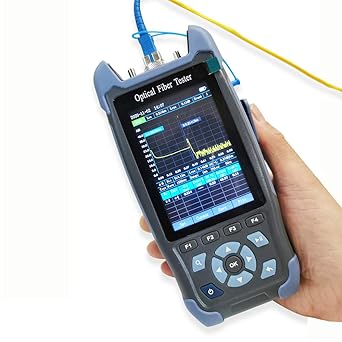

• Mini-Pro OTDR Test Wavelength 1310/1550nm,Test Range 5m~60km,Dynamic Range 24dB/22dB.Connector FC/UPC . With FC/APC-FC/UPC-SX And FC/SC/LC/ST Adapter.
• Built-in OPM Calibration wavelength (850/980/1300/1310/1490/1550/1625/1650nm); Built-in OLS 1310/1550nm;Bulit-in VFL 10Mw
• built-in these fuction: RJ45 Sequence test ;RJ45 Cable Tracker (Additional purchase detector); RJ45 Line length test ;Flashlight
• 3.5 inch Color Display (not touch); Micro USB Data Interface; External storage TF Card
• Lifetime Friendly Customer Service,if have problem,pls contact us.

• Mini-Pro OTDR Test Wavelength 1310/1550nm,Test Range 5m~60km,Dynamic Range 24dB/22dB.Connector FC/UPC . With FC/APC-FC/UPC-SX And FC/SC/LC/ST Adapter.
• Built-in OPM Calibration wavelength (850/980/1300/1310/1490/1550/1625/1650nm); Built-in OLS 1310/1550nm;Bulit-in VFL 10Mw
• built-in these fuction: RJ45 Sequence test ;RJ45 Cable Tracker (Additional purchase detector); RJ45 Line length test ;Flashlight
• 3.5 inch Color Display (not touch); Micro USB Data Interface; External storage TF Card
• Lifetime Friendly Customer Service,if have problem,pls contact us.

• Functions: For evaluating FTTx and access network construction and maintenance, identifying fiber breakpoints, measuring cable length, and calculating relative optical power losses.
• Parameters?Mini-Pro OTDR Test Wavelength 1310/1550nm,Test Range 5m~60km,Test Unit is km. Dynamic Range 24dB/22dB (can't test spliter,if test the spliter,the Dynamic need more than 42dB) .Connector FC/UPC (Interchangeable SC?ST)
• Built-In: 3.5 inch Color Display (not touch);OTDR, Event Map, Power Meter, Cable Length Measurement Tool, Cable Tracker, and RJ45 Sequencer
• Internal Storage: Micro USB Data Interface; External storage TF Card. Analysis Software included for further data analysis or processing,(Note:The Analysis Software need install on PC,Using the Analysis Software open print the test result and print)
• Please make sure you are a professional before purchasing. If you can't test, please contact us. Our products have been strictly tested before leaving the factory and will not be unusable. Because of the accuracy of the product, some scenarios cannot be used. You need to buy products with higher accuracy, not because our products have problems.

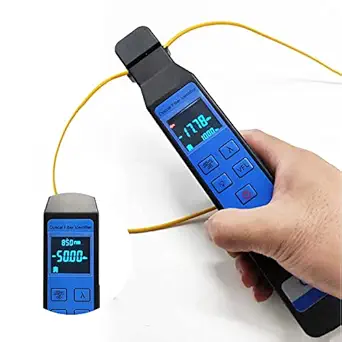

• Indicate the signal directions and power in fiber,displays the relative core power.Can detect optical signals in the tone signal fixed load,270Hz,1KHz and 2KHz,to identify a specific optical fiber,can quickly find the necessary fiber.
• Build in VFL can measure the fiber distance is about 10-15 kilometers.
• Build in OPM function,test wavelength 850/1300/1310/1490/1550/1625nm,Measurement range -50~+26dB.Connectortype 2.5 universal connector.
• Metal gripper,no need to change the adapter,Application of optical fiber 250um/900um/2mm/3mm
• Lightweight design and LED color screen.,outline size 230*43*36mm,weight 200g.Lifetime Friendly Customer Service,if have problem,pls contact us.
