Test, Measure & Inspect By Digilent

• Oscilloscope: Two differential channels with 14-bit resolution at up to 125 MS/s per channel with a +/-25 V input range, 30+ MHz bandwidth with BNC Adapter; User-configurable input filters and lock-in amplifier; FFT, Spectrogram, Eye Diagram, XY Plot views, and more
• Arbitrary Waveform Generator: Two channels with 14-bit resolution at up to 125 MS/s per channel with a +/-5 V output range, 12 MHz bandwidth with BNC Adapter; Standard waveforms, amplitude and frequency modulated signals, direct playback from analog inputs, custom waveforms, and more
• Logic Analyzer and Pattern Generator: 16 digital I/O channels at up to 125 MS/s per channel; Individually-configurable 3.3 V digital inputs and outputs, 5 V tolerant inputs; SPI, I2C, UART, CAN, JTAG, ROM logic, custom protocols, and more
• Programmable Power Supplies: 0.5 V to 5 V and -0.5 V to -5 V variable power supplies; Up to 800 mA per channel when used with an auxiliary power source
• Additional software instruments including: Spectrum Analyzer, Network Analyzer, and Impedance Analyzer; Protocol Analyzer, virtual digital I/O such as buttons, switches, LEDs; Data logging, Voltmeter, in-app scripting
• SDK for hardware control in C, C++, Python, and other languages; Support for LabVIEW and MATLAB
• Ships with: one Analog Discovery 3, One plastic project box, One USB-C to USB-C programming cable, One 2x15 flywire signal cable assembly, 5-pack of 6-pin male headers, 30-pin flywire labels
• 1 Year subscription to Multisim Live and 30-day Trial of EveryMeasure with 5GB and 5 Users (requires Analog Discovery 3 registration through Digilent)

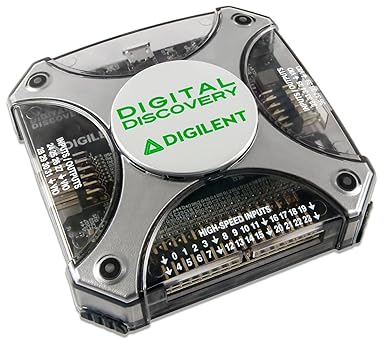

• Kit includes one Digital Discovery, High Speed Adapter, and 24 High Speed Logic Probes
• 32 channel Digital Logic Analyzer up to 800 MS/s
• Digital bus analyzers include SPI, I2C, CAN, UART and more
• 16 Channel pattern generator and virtual I/O
• Logic Level selectable between 1.2V and 3.3V, inputs 5V tolerant

• 8 SE/4 DIFF 16-bit voltage inputs
• 100 kS/s max sample rate (320 kS/s aggregate for stacked boards)
• Multiple input ranges (+/-10 V, +/-5 V, +/-2 V, +/-1 V)
• Onboard sample buffers allow high-speed acquisition
• External scan clock
• External digital trigger input
• Screw terminal connections

• Oscilloscope: Two differential channels with 14-bit resolution at up to 125 MS/s per channel with a +/-25 V input range, 30+ MHz bandwidth with BNC Adapter; User-configurable input filters and lock-in amplifier; FFT, Spectrogram, Eye Diagram, XY Plot views, and more
• Arbitrary Waveform Generator: Two channels with 14-bit resolution at up to 125 MS/s per channel with a +/-5 V output range, 12 MHz bandwidth with BNC Adapter; Standard waveforms, amplitude and frequency modulated signals, direct playback from analog inputs, custom waveforms, and more
• Logic Analyzer and Pattern Generator: 16 digital I/O channels at up to 125 MS/s per channel; Individually-configurable 3.3 V digital inputs and outputs, 5 V tolerant inputs; SPI, I2C, UART, CAN, JTAG, ROM logic, custom protocols, and more
• Programmable Power Supplies: 0.5 V to 5 V and -0.5 V to -5 V variable power supplies; Up to 800 mA per channel when used with an auxiliary power source
• Additional software instruments including: Spectrum Analyzer, Network Analyzer, and Impedance Analyzer; Protocol Analyzer, virtual digital I/O such as buttons, switches, LEDs; Data logging, Voltmeter, in-app scripting
• SDK for hardware control in C, C++, Python, and other languages; Support for LabVIEW and MATLAB
• Ships with: one Analog Discovery 3, One plastic project box, One USB-C to USB-C programming cable, One 2x15 flywire signal cable assembly, 5-pack of 6-pin male headers, 30-pin flywire labels
• 1 Year subscription to Multisim Live and 30-day Trial of EveryMeasure with 5GB and 5 Users (requires Analog Discovery 3 registration through Digilent)

• 8 SE/4 DIFF 16-bit voltage inputs
• 100 kS/s max sample rate (320 kS/s aggregate for stacked boards)
• Multiple input ranges (+/-10 V, +/-5 V, +/-2 V, +/-1 V)
• Onboard sample buffers allow high-speed acquisition
• External scan clock
• External digital trigger input
• Screw terminal connections

• Kit includes one Digital Discovery, High Speed Adapter, and 24 High Speed Logic Probes
• 32 channel Digital Logic Analyzer up to 800 MS/s
• Digital bus analyzers include SPI, I2C, CAN, UART and more
• 16 Channel pattern generator and virtual I/O
• Logic Level selectable between 1.2V and 3.3V, inputs 5V tolerant
