Test, Measure & Inspect By Fowler

• Package Dimensions: 6.5 L x 2 H x 12 W (inches)
• Package Weight : 2 pounds
• Country of Origin : China
• Part Number: 72-234-423-0

• 1 year warranty offered by Fowler High Precision

• Outside micrometer with 60-degree point measures hard-to-reach areas including thread accuracy in screw-cutting operations, small flutes, recesses, grooved trolley wires, and keyways
• Digit display has 0.001\" graduation intervals and Vernier scale has 0.0001\" graduation intervals and an overall accuracy of 0.00016\" for precise readings
• Conical anvil and spindle have a hardened and precision-ground micro-lapped finish with a 0.012\" radius curvature at the extremity and a 0.21\" length
• Hardened, ground and lapped spindle thread provides smooth movement, accuracy, and long life
• Ratchet stop applies constant force for repeatability between users

• 1 year warranty offered by Fowler High Precision

• Fowler Stainless Steel Frame Xtra Value Cal Electronic Caliper
• Item Package Quantity: 1
• Number of Items: 1

• 1 year warranty offered by Fowler High Precision

• Water resistant IP54 12\"/300mm electronic caliper with absolute sensor technology
• Accuracy of 0.0015\"/0.03mm with 0.0005\"/0.01mm resolution for precise measurements
• Hardened stainless steel frame for corrosion resistance and long life, rated to IP 54 level of protection against dust and splashing liquid
• Digital, single-value readout LCD shows inch and metric units for versatility when measuring, zero setting allows to take intermediate or differential measurements

• Hammertone blue baked enamel finish
• Microfine graduations on satin chrome finish and carbide tipped measuring faces
• Diameter of measuring faces: 0.256\"
• Graduation: 0.0001\"
• Flatness: 0.00003\"

• Hammertone blue baked enamel frame is tapered for hard-to-get-at places
• Anvil and spindle are hardened and precision ground with microlap finish on measuring faces
• Positive lever locking clamp
• Quick and easy zero adjustment on sleeve
• Ratchet thimble for repeatability

• Digital outside micrometer with ball-style anvil/spindle pair and choice of measuring range measures inside and outside diameters of sleeves, collars, tubing, and other curved and cylindrical surfaces
• LCD performs direct inch/metric conversions and has a switchable resolution of 0.00005\" and 0.001mm
• Friction thimble provides smooth and quiet operation, and is suitable for one-handed operation
• Certified IP54 for dust and water protection
• RS-232 output provides ability to export readings to a computer (cable not included)

• Outside micrometer with choice of measuring range and flat anvil/spindle pair for general purpose measuring
• Vernier scale has microfine 0.0001\" graduations and accuracy of 0.0001\" for precise readings
• Hardened, precision-ground, and carbide-tipped anvil and spindle have 0.256\" measuring faces with micro-lapped finish, 0.00003\" flatness and 0.00005\" parallelism for accurate measurements
• Friction or ratchet-stop thimble provide exact and repetitive readings, satin chrome finish on thimble and sleeve helps resist rust and reduce glare
• 1 year full warranty offered by Fowler High Precision, an American company

• Fowler 1\" diameter test indicator with height gage bar and axial support is designed to measure surface variations in narrow or recessed areas in fractions of an inch, comes with full 1 year warranty offered by Fowler, an American company
• Balanced dial with 0-15-0 dial reading, 0.060\" range, 0.0005\" graduation, revolution counter and auto reverse mechanism provides smooth movement for measuring from a specific reference point
• Three carbide contact points with 0.5\" length and 0.040\", 0.080\" and 0.120 point diameters swivel 210 degrees to reach any location
• Dovetail mounts on front and back and 5/32\" stem-type mount on top provide a range of mounting options
• Axial support with three hinges and positive locking using three hex screws provides stable locking in a variety of positions

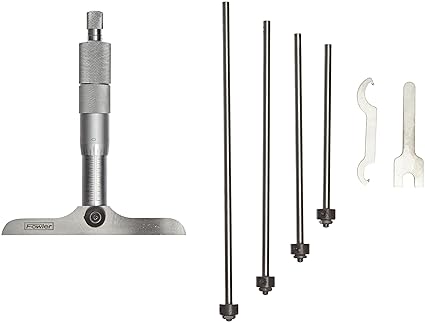

• Measurement range for series of 0 up to 6\", and resolution of 0.001\"
• Vernier scale on barrel for precise measurements in fine units
• Includes 0.176\" diameter measuring rods for flexibility
• Ratchet thimble and locking clamp for uniform pressure and accuracy
• Ground, hardened, and lapped base for durability and accuracy
