Test, Measure & Inspect By Hantek

• 10 typical test frequency: 100Hz, 120Hz, 400Hz, 1kHz, 4kHz, 10kHz, 40kHz, 50kHz, 75kHz, 100kHz
• 2.8'TFT LCD, dual display of measurement data,more clear; Support data record analysis; Support PC, easy to control and measure remotely
• Test lead: 3 terminal/5 terminal switch;Measuring speed: high speed/intermediate speed/low speed switch; Range: support manual/auto switch, easy to do quick measurement
• Double shock protection sleeve, all-round protection, shakeproof, fall-arrest, protect the machine from damage, longer use time, more comfortable measurement; Bracket design, easy to put and measure
• Application: Measuring the parameters of the component such as inductance, capacitance, resistance and so on

• SERVICEABLE - This tablet oscilloscope is thin, light, anti-fall, earthquake-resistant, durable and easy to carry. Unique suspension design, hands-free, more convenient to use for you.
• POWERFUL - Standard configuration of 4-channel digital oscilloscope, maximum bandwidth of 250MHz, maximum sampling rate of 1GSa/s, 8M large storage.of data recording, storage, trend chart, statistical analysis and so on.
• USER FRIENDLY - Multi-touch large screen, resolution as high as 800 * 480. The 4 channel tablet oscilloscope is Friendly and easy-to-use UI, good interactive experience, and one-button waveform storage, which is convenient and fast.
• QUICK CHARGE - Built-in ultra-large capacity battery, long battery life, fast charging and abundant power. The standard 18W charger supports type-C fast charging, and can also share a charging device with the mobile phone.
• WIDELY APPLICATON - It integrates oscilloscope, multimeter, provides high-precision multimeter, and has the functions of data recording, storage, trend chart, statistical analysis and so on.

• Remote Control and U Disk Storage: Hantek DSO5102P oscilloscope can store more than 1000 waveforms information, and can upgrade the system through the USB port, support plug-and-play USB storage devices and communicate with the computer and remote control through USB.
• measure AC/DC Voltage and Current, Resistance, Diode, Continuity Buzzer
• Large TFT LCD Display: Large 7-inch 64K color TFT LCD display with a resolution of 800 * 480. It can clearly show any measured alternating current, including sine, square, sawtooth and triangular waves.
• A RS232C or USB standard serial port, data hold, relative mode,
• Customer Service - If you have any questions about our product and service, please contact our after-sales customer service as soon as possible, we will solve it for you as soon as possible.

• 10 typical test frequency: 100Hz, 120Hz, 400Hz, 1kHz, 4kHz, 10kHz, 40kHz, 50kHz, 75kHz, 100kHz
• 2.8'TFT LCD, dual display of measurement data,more clear; Support data record analysis; Support PC, easy to control and measure remotely
• Test lead: 3 terminal/5 terminal switch;Measuring speed: high speed/intermediate speed/low speed switch; Range: support manual/auto switch, easy to do quick measurement
• Double shock protection sleeve, all-round protection, shakeproof, fall-arrest, protect the machine from damage, longer use time, more comfortable measurement; Bracket design, easy to put and measure
• Application: Measuring the parameters of the component such as inductance, capacitance, resistance and so on

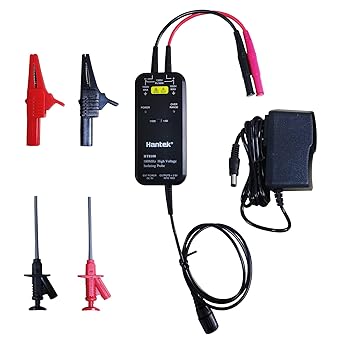

• 1. The high-voltage isolation probe has an over-range alarm function and is indicated by a red LED for easier use.
• 2. The high-voltage isolation probe is small in size, beautiful in shape, firm in structure, durable in use.
• 3. This oscilloscope differential probe offers high stability, long service life, reliability and precision.
• 4. The high-voltage isolation probe uses a differential input mode and is primarily used in locations where high-voltage floating measurements are required.
• 5. With 1/50 and 1/500 attenuation, the differential mode measurement range is 130V (DC+peakAC) and 1300V (DC+peakAC).

• Cost-effective economy oscilloscope.
• Support arbitrary waveform output, 14 kinds of trigger modes, standard with 5 kinds of serial protocol triggers and decodes.
• Useful commissioning instrument for various fields such as communication, aerospace, national defense, embedded systems, computers, research and education.
• Package weight of the Product: 6.33 Pounds

• 2 channel oscilloscope with 100Mhz Bandwidth
• Sampling rate up to 1 GSa/s
• 8M memory depth
• Built-in 1CH 5MHz Waveform Generator

• AC/DC frequency range: Up to 20 kHz
• Effective Measurement Range: 20mA to 65A DC
• Power circuit measurement and malfunction analysis
• Power electronics equipments measurement
