Test, Measure & Inspect By LABOMED

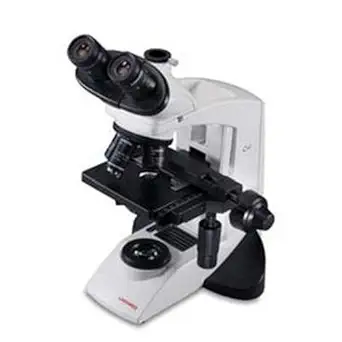

• Type of product: Trinocular microscope; Stand: Single mold aluminium die-cast stand with hand rests for enhanced comfort and stability; lllumination System: LED (built in rechargeable battery) illumination with variable illumination control. Up to 100 000 hours of LED life
• Eyepiece (10x): Widefield 10x/20mm focusable eyepieces with foldable rubber eye guards antifungal ; Rated Voltage/Electric Current: Universal input 100V - 240V AC 50/60Hz. Built in voltage stabilizer ; Nosepiece: Reverse angle quadruple nosepiece (Ball bearing type) with click stops and rubber grip
• Body: Siedentopf binocular or trinocular head 30 inclined 360 rotatable interpupillary distance 48 - 75mm; Optional Accessories: Pointers & micrometer reticules. Phase (Simple & Zernike) polarizing fluorescence and dark field kits. Dual viewing bridge. Quintuple position viewing bridge. Application specific objectives and eyepieces. Cord hanger Kit. Digital cameras (3MP 5MP 7MP) and adapters. Kohler kit. Ceramic stage upgrade; Optional accessories
• Pointers & micrometer reticules. Phase (Simple & Zernike) Polarizing fluorescence and dark field Kits. Dual viewing bridge. Quintuple position viewing bridge. Application specific objectives and eyepieces. Cord hanger kit. Digital cameras (3MP 5MP 7MP) and adapters. Kohler kit. Ceramic stage upgrade; Package Contents: Power Cable (6ft). Cargille immersion oil. Spare bulb (20w version only). Nylon dust cover & cleaning cloth. Styrofoam casing; Objectives: RP series infinity corrected DIN plan achromatic objectives 4x 10x 40x (spring loaded) 100x (spring loaded oil) antifungal

• Mechanical Stage: Rackless X-axis, double plate mechanical stage plate size 200 x 160mm, X/Y travel range 78 x 54mm. Low drive movement controls. Hard coated surface for scratch resistance.
• Condenser: Sub-stage Abbe condenser NA 1.25 with aspheric lens and iris diaphragm. Rack and pinion movements on stainless steel guides. Day light blue filter provided.
• Focusing: Co-axial coarse and fine focusing on ball drive system for smooth operation.
• Illumination: Halogen 6V-20W illumination with variable illumination control. Up to 2,000 hours of Halogen lamp life.
• Electrical: Input 220V-240V AC

• Mechanical Stage: Mechanical stage with Co-axial drive, highly smooth on Ball Slides, Stainless Steel Holders for Slide 75 x 50mm Movement.
• Condenser: Sub-stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with blue filter. Rack and pinion movements on metal guides.
• Focusing: Co-axial coarse and fine focusing on ball drive system for smooth movement.
• Illumination: Halogen 6V-20W illumination with variable illumination control. Up to 2,000 hours of Halogen lamp life.
• Electrical: Input 220V-240V AC

• Type of product: Binocular microscope; lllumination System: LED illumination with variable illumination control; Upto 100 000 hours of LED life; Focusing: Co-axial coarse and fine focusing on ball drive system for smooth operation; Fine drive movement 0.2mm/rotation
• Stage: Rectangular stage size 135 x 124mm X/Y travel range 76mm x 50mm. Low drive movement controls single specimen holder; Condenser: Sub stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with snap-in frosted white filter. Rack and pinion movements on metal guides; Eyepiece (10x): Wide field eyepiece 10x/18mm with foldable eye guard lockable antifungal
• Rated Voltage/Electric Current: Universal input 100V - 240V AC 50/60Hz. Built-in voltage stabilizer; Nosepiece: Quadruple nosepiece (ball bearing type) with rubber grip; Body: Binocular (Lx 200) viewing body 45 inclined 360 rotatable dovetail
• Objectives: LP series DIN Semi Plan Achromatic objectives 4x 10x 40x (spring loaded) 100x (spring loaded oil) anti fungal; Objectives; LP series DIN Semi Plan Achromatic objectives 4x 10x 40x (spring loaded) 100x (spring loaded oil) anti fungal

• Type of product: Trinocular microscope; Stand: Single mold aluminium die-cast stand with hand rests for enhanced comfort and stability; lllumination System: LED (built in rechargeable battery) illumination with variable illumination control. Up to 100 000 hours of LED life
• Eyepiece (10x): Widefield 10x/20mm focusable eyepieces with foldable rubber eye guards antifungal ; Rated Voltage/Electric Current: Universal input 100V - 240V AC 50/60Hz. Built in voltage stabilizer ; Nosepiece: Reverse angle quadruple nosepiece (Ball bearing type) with click stops and rubber grip
• Body: Siedentopf binocular or trinocular head 30 inclined 360 rotatable interpupillary distance 48 - 75mm; Optional Accessories: Pointers & micrometer reticules. Phase (Simple & Zernike) polarizing fluorescence and dark field kits. Dual viewing bridge. Quintuple position viewing bridge. Application specific objectives and eyepieces. Cord hanger Kit. Digital cameras (3MP 5MP 7MP) and adapters. Kohler kit. Ceramic stage upgrade; Optional accessories
• Pointers & micrometer reticules. Phase (Simple & Zernike) Polarizing fluorescence and dark field Kits. Dual viewing bridge. Quintuple position viewing bridge. Application specific objectives and eyepieces. Cord hanger kit. Digital cameras (3MP 5MP 7MP) and adapters. Kohler kit. Ceramic stage upgrade; Package Contents: Power Cable (6ft). Cargille immersion oil. Spare bulb (20w version only). Nylon dust cover & cleaning cloth. Styrofoam casing; Objectives: RP series infinity corrected DIN plan achromatic objectives 4x 10x 40x (spring loaded) 100x (spring loaded oil) antifungal

• Mechanical Stage: Mechanical stage with Co-axial drive, highly smooth on Ball Slides, Stainless Steel Holders for Slide 75 x 50mm Movement.
• Condenser: Sub-stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with blue filter. Rack and pinion movements on metal guides.
• Focusing: Co-axial coarse and fine focusing on ball drive system for smooth movement.
• Illumination: Halogen 6V-20W illumination with variable illumination control. Up to 2,000 hours of Halogen lamp life.
• Electrical: Input 220V-240V AC
