Test, Measure & Inspect By UNI-T

• This advanced Digital Oscilloscope achieves a real-time sampling rate of 1 GSa/s, and with an expansive memory of up to 56 Mpts, it allows for in-depth examination of captured waveforms. Notably, the oscilloscope maintains low background noise of less than 100?Vrms, and offers a versatile vertical scale range from 1 mV/div-20 V/div.
• The oscilloscope is equipped with an extensive array of standard triggering options including edge, pulse width, video, slope, runt, overshoot, delay, timeout, duration, setup and hold, Nth edge, and pattern trigger. It also supports RS232/UART trigger, IC trigger, SPI trigger, with CAN and LIN triggers as optional additions. Exceptional decoding capabilities encompass RS232/UART, IC, SPI, and optional CAN and LIN.
• This instrument excels with a waveform capture rate of 500,000 wfms/s, enabling rapid capture of instantaneous and abnormal signals. The ability to record, display, and analyze up to 100,000 waveforms substantially enhances waveform capturing capacity and expedites the circuit debug process.
• The oscilloscope features a 1M points enhanced FFT function that supports frequency setting, waterfall diagram, detection setting, and marker measurement. It is capable of automatically measuring 36 waveform parameters, providing detailed statistics for each parameter. Troubleshooting is facilitated by pass/fail testing features, a multi-channel independent 7-bit hardware frequency counter, and DVM support for dual-channel independent AC and DC true RMS measurement.
• The oscilloscope offers a comprehensive set of arithmetic operations, including FFT, +, -, ?, ?, digital filtering, logic operations, and advanced operations, to assist in complex measurement needs.

• UNI-T Thermal Imaging Infrared Camera UTi260B. resolution 49,152 (256x192) pixels. 640x480 optical light lens. 4 display modes (Thermal, blending, visible, PIP) and 7 (iron oxide red, rainbow, white heat, lava, black heat, red heat, high-contrast rainbow) palettes for clearer view and easier analysis. Adjustable emissivity.
• Safe & Durable. User friendly .IP65 (Waterproof dustproof). 2m drop test. Nonskid rubber cover. Ergonomic grip. Noncontact monitor system. High-accuracy detection. Charged with type-C USB cable and run for 5h. Fast charging with power banks.
• Simple & Easy one-hand operation. 4 optional measurements features. Center spot, HiLo tracking (max & min), ROI (region of interest), sync multi-points (3 more, customized). 2.8 LCD display. 16GB micro SD card storage. PC analysis software. Real-time image transmission. Programmable auto shut down (5min/10min/30min).
• PC software for image analysis and live screencasting
• Versatile & Reliable for inspection of power line, solar panel, electric closet, motor, engine, bearing, brake pad; detection of capacitor, HVAC; maintenance of base station. Metal die casting, metallurgy, firefighting, search and rescue, night vision, electrical testing, substation equipment, construction, environmental monitoring, petrochemical engineering.

• 6 kinds of hardness values (HL, HB, HRC, HRB, HV, HS) in real-time measurement
• Camera: 640?480 pixels (900 BMP format pictures could be stored)
• Hardness Tester with Inbuilt Thermal Printer, Support thermal printing
• Mobile phone Bluetooth APP and PC software analysis data
• One hardness tester can be equipped with 7 different impact devices

• This advanced Digital Oscilloscope achieves a real-time sampling rate of 1 GSa/s, and with an expansive memory of up to 56 Mpts, it allows for in-depth examination of captured waveforms. Notably, the oscilloscope maintains low background noise of less than 100?Vrms, and offers a versatile vertical scale range from 1 mV/div-20 V/div.
• The oscilloscope is equipped with an extensive array of standard triggering options including edge, pulse width, video, slope, runt, overshoot, delay, timeout, duration, setup and hold, Nth edge, and pattern trigger. It also supports RS232/UART trigger, IC trigger, SPI trigger, with CAN and LIN triggers as optional additions. Exceptional decoding capabilities encompass RS232/UART, IC, SPI, and optional CAN and LIN.
• This instrument excels with a waveform capture rate of 500,000 wfms/s, enabling rapid capture of instantaneous and abnormal signals. The ability to record, display, and analyze up to 100,000 waveforms substantially enhances waveform capturing capacity and expedites the circuit debug process.
• The oscilloscope features a 1M points enhanced FFT function that supports frequency setting, waterfall diagram, detection setting, and marker measurement. It is capable of automatically measuring 36 waveform parameters, providing detailed statistics for each parameter. Troubleshooting is facilitated by pass/fail testing features, a multi-channel independent 7-bit hardware frequency counter, and DVM support for dual-channel independent AC and DC true RMS measurement.
• The oscilloscope offers a comprehensive set of arithmetic operations, including FFT, +, -, , , digital filtering, logic operations, and advanced operations, to assist in complex measurement needs.

• UNI-T Thermal Imaging Infrared Camera UTi260B. resolution 49,152 (256x192) pixels. 640x480 optical light lens. 4 display modes (Thermal, blending, visible, PIP) and 7 (iron oxide red, rainbow, white heat, lava, black heat, red heat, high-contrast rainbow) palettes for clearer view and easier analysis. Adjustable emissivity.
• Safe & Durable. User friendly .IP65 (Waterproof dustproof). 2m drop test. Nonskid rubber cover. Ergonomic grip. Noncontact monitor system. High-accuracy detection. Charged with type-C USB cable and run for 5h. Fast charging with power banks.
• Simple & Easy one-hand operation. 4 optional measurements features. Center spot, HiLo tracking (max & min), ROI (region of interest), sync multi-points (3 more, customized). 2.8" LCD display. 16GB micro SD card storage. PC analysis software. Real-time image transmission. Programmable auto shut down (5min/10min/30min).
• PC software for image analysis and live screencasting
• Versatile & Reliable for inspection of power line, solar panel, electric closet, motor, engine, bearing, brake pad; detection of capacitor, HVAC; maintenance of base station. Metal die casting, metallurgy, firefighting, search and rescue, night vision, electrical testing, substation equipment, construction, environmental monitoring, petrochemical engineering.

• 6 kinds of hardness values (HL, HB, HRC, HRB, HV, HS) in real-time measurement
• Camera: 640?480 pixels (900 BMP format pictures could be stored)
• Hardness Tester with Inbuilt Thermal Printer, Support thermal printing
• Mobile phone Bluetooth APP and PC software analysis data
• One hardness tester can be equipped with 7 different impact devices

• 12V cranking lead acid battery test
• Display battery capacity, voltage, resistance and life
• 12/24V charging or cranking system test
• Four Terminal Kelvin Test
• 10 types of battery standards

• Auto range, 2~3/s sampling rate, True RMS measurement
• VFC, frequency conversion function, NCV, Non-Contact Voltage testing function: induce electric field strength via the jaw
• Zero mode, LCD backlight, data hold, uto power off, low battery indication and overload protection
• Comfortable to hold and easy to carry.
• Complies with CE (European Union) directives

• Clear LCD display. Comfortable protective cover with test lead hanging groove. 2 meters drop test, precision protection. Loud buzzer sound; Ergonomic design.

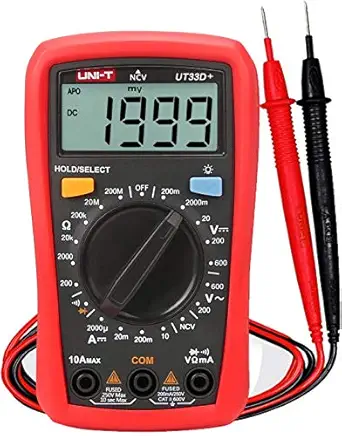

• DC voltage (V)200mV/2V/20V/200V/600V; Accuracy ?0.5%?2. AC voltage (V)200V/600V?; Accuracy 1.2%+3.
• DC current (A)2000?A/20mA/200mA/10A; Accuracy ?1%+2. Resistance ()200/2k/20k /200k/20M/200M; Accuracy ?0.8%+2.
• 2000 count LCD Display. Auto power off/Auto backlight off. Diode test/Continuity buzzer.
• 2m drop test. Safety Rubber Holster with Test probe holder. Non-contact voltage detection. Ideal for Home, Students, Colleges, Manufacturing and DIY Projects.
