Power Transmission Products By ReliaBot

• 1000mm ( 1 meter ) MGN15 linear rail guide with 1 MGN15H carriage block
• There are 2 red rubber stoppers or cable ties to keep the block on the rail
• Please be careful when removing the block from the rail or installing the block to the rail, in case the balls in the block fall out.
• Used for high load conditions
• Comes with 2 or more spare balls for backup

• 500mm stainless steel MGN12 linear rail guide with MGN12H block
• There are 2 rubber stoppers to keep the block on the rail
• Threaded holes of the block: 4-M3*3.5; center distance of the holes: 20*20mm; it is suggested to use T nut M3 if you fix it to 20 series EU Al-profile
• The material of the rail and block is stainless steel, compared with bearing steel, it can meet higher requirements.
• Compared with bearing steel, maintenance times can be reduced.

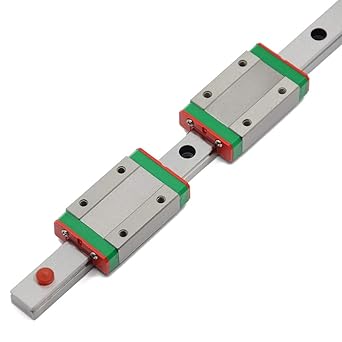

• 600mm MGN12 linear rail guide with 2 MGN12H blocks
• There are 2 red rubber stoppers to keep the block on the rail
• Threaded holes of the block: 4-M3*3.5; center distance of the holes: 20*20mm
• It is suggested to use M3 socket head cap screws and T nuts if you fix it to 20 series EU Al-profile
• Come with 2 spare balls in the package for backup

• The material is carbon steel, which is very suitable for linear motion rod.
• The surface has been chrome plated to enhance the hardness.
• Chamfer on both ends, easier to install linear bearings and won't hurt fingers when installing it.
• Diameter 8mm, tolerance -0.005mm to -0.03mm ( 7.995mm - 7.97mm)
• Length 600mm, tolerance ? 0.5mm ( 599.5mm - 600.5mm )
