Power Transmission Products By uxcell

• 39mm Diameter X 47mm Length; 10000RPM rotational speed
• Clamp-style mount for secure attachment to shaft
• Accommodates angular, axial and parallel misalignment
• Aluminum hubs for light weight, stainless steel discs for strength
• Shaft couplers suitable for connect servo motor, stepper motor, encoder, screw driving, machine platform, etc.

• Size: Model: LM25UU; Material: 45# Steel; Bore Diameter: 25mm; Outer Diameter: 40mm; Total Length: 59mm
• Quality Material: The linear bearing is made of 45# steel, which has good hardness, wear resistance and corrosion resistance, and can provide stable and reliable operation under various working conditions.
• Smooth Motion: Linear bearings achieve low friction coefficient and high rigidity through optimized design and precision processing. This allows the bearings to provide smooth, shock-free motion, reducing energy losses and improving overall operating efficiency.
• High Precision and Stability: The linear bearings have precise dimensions and manufacturing processes to provide highly consistent motion control. They maintain stable linear motion while reducing friction and vibration, allowing for higher precision requirements.
• Wide Application: Widely used in electronic equipment, tensile testing machines, digital three-dimensional coordinate measuring equipment and other precision equipment, as well as multi-axis machine tools, punch presses, tool grinding machines, automatic gas cutters, printers and other industrial machinery sliding.

• 3mm in diameter; Package includes 50 piece ball
• Precision grade G100 balls
• Made of 316L stainless steel with higher corrosion resistance than the type of 316
• smooth surface precision balls
• Offer excellent resistance to sulphuric acid compounds

• Model: SCE1616 (I.D. (Fw)=1\", O.D. (D)=1-1/4\", Width (C)=1\")
• ST14 Steel Drawn Cup, ST13 Steel Cage, GCr15 Needle Rollers
• Good heat tolerance, high load carrying capacity and stiffness
• Low cross section, enable downsizing and suit for use in restricted mounting spaces
• Pre-Lubricated. Good running properties

• U604ZZ (I.D.=4mm, O.D.=13mm, Thickness=4mm)
• U604ZZ bearings are shielded on both sides to keep lubricant in
• Carbon Steel long-life bearings, smooth and low noise
• ABEC Tolerance 1 (P0), Z2 Noise Level for most general use
• Dynamic load rating of 1106 newtons and Static load rating of 390 newtons

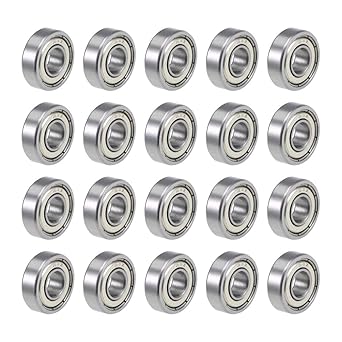

• R4ZZ (I.D.=1/4\", O.D.=5/8\", Thickness=0.196\")
• r4-2z bearings are shielded on BOTH SIDES to keep lubricant in
• Chromium Steel long-life bearings, smooth and low noise
• ABEC Tolerance 1 (P0), Z2 Noise Level for most general use
• Static load rating of 615 newtons and dynamic load rating of 1480 newtons

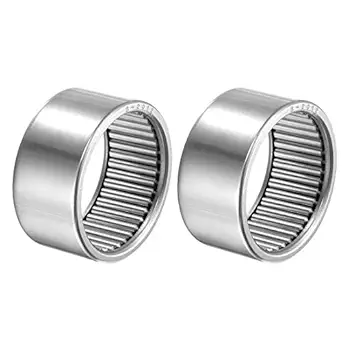

• [SIZE] - Model: B-2012 (I.D. (Fw)= 1-1/4\", O.D. (D)= 1-1/2\", Width (C)= 3/4\")
• [MATERIAL] - Steel Full Complement Drawn Cup, without Cage, Chrome Steel Needle Rollers
• [FEATURES] - The outer ring of needle roller bearing is formed by precision stamping of thin steel plate, the structural space is small, and has a large load capacity
• [CAPABILITY] - Dynamic Load Rating: 6410N, Static Load Rating: 14300N, Limit Speed: 3500RPM
• [APPLICATIONS] - They are suitable for applications where the installation space is restricted and the housing bore can be used as a raceway

• [SIZE] - Model: SCE1012 (I.D. (Fw)= 5/8\", O.D. (D)= 13/16\", Width (C)= 3/4\")
• [MATERIAL] - Steel Drawn Cup, Steel Cage, Chrome Steel Needle Rollers
• [FEATURES] - The outer ring of needle roller bearing is formed by precision stamping of thin steel plate, the structural space is small, and has a large load capacity
• [CAPABILITY] - Dynamic Load Rating: 12100N, Static Load Rating: 19700N, Limit Speed: 16000RPM
• [APPLICATIONS] - They are suitable for applications where the installation space is restricted and the housing bore can be used as a raceway

• [SIZE] - Model: SCE78 (I.D. (Fw)= 7/16\", O.D. (D)= 5/8\", Width (C)= 1/2\")
• [MATERIAL] - Steel Drawn Cup, Steel Cage, Chrome Steel Needle Rollers
• [FEATURES] - The outer ring of needle roller bearing is formed by precision stamping of thin steel plate, the structural space is small, and has a large load capacity
• [CAPABILITY] - Dynamic Load Rating: 6400N, Static Load Rating: 7800N, Limit Speed: 21900RPM
• [APPLICATIONS] - They are suitable for applications where the installation space is restricted and the housing bore can be used as a raceway
