• DC 3V-4.2V boost 2000V, pulse boost module.It can work continuously and the maximum discharge distance is about 1.5MM. Dimensions: 41x26x19mm/1.6x1.0x0.74inch.
• Input voltage: 3V-4.2V;Input Current: Max 2A;No-load current: 130MA(at 4.2V);Output voltage: 2000V (low battery voltage, low output voltage); Output current: 0.5~1mA(the external parallel capacitor can increase the output current).
• The output of 3V voltage input is about 1500V, the output of 3.7V input is about 1800V, and the output of 4.2V input is about 2000V. The output circuit is doubler rectifier. With high-voltage discharge capacitor, 2000V 223 (0.022uf). Note: This Module has a high voltage capacitor, the capacitor may be used after the remaining power. High voltage output, pay attention to safety when using.
• This is a high-voltage, low-current, low-power boost module. If you want to increase the instantaneous discharge current, you can output a large capacity, high-voltage capacitor in parallel (recommended four air-conditioning compressors CBB65 capacitor, 450V series use, capacity size according to your needs to choose).
• Usage: Popular science experiment, electronic instrument, negative ion generator, scientific small-scale production, etc. Note: The board has a high voltage capacitor, which may leave surplus electricity after use.High pressure danger, use need to pay attention to safety.

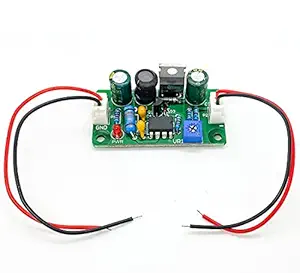

• DC-DC boost power supply module, MC34063 scheme, widely used in Nixie tubes, Nixie tube clock, Vacuum tubes 6E2, 6E1, 6E5 audio level indication.
• Input voltage 9V-12V, output voltage 80-380V adjustable. The higher the output voltage, the lower the output power and the lower the efficiency.
• When the output voltage is 350V, the maximum output current is 4mA. When the output voltage is 170V, the maximum output current is 25mA. Output voltage 170V, output current 10mA, efficiency 65%.
• Module Size: 5.0x2.6x1.7cm/1.96x1.02x0.67inch.
