Additive Manufacturing Products By xcluma

• A4988 DRV8825 3D PRINTER STEPPER MOTOR DRIVER CONTROL EXTENSION SHIELD If jumper is hit the position of ON DP, that means 16 segment (4988) or 32 segment (8825)Jm connected motor
• connect 5v and 9v power supply E, S, D, G, respectively corresponding to the connection of the Enable/Step/Dir/Gnd drive signal output

• Mini size,easy to carry.Four-size ports design,very practical.
• Suitable for M2,M2.5,M3,M4 screw nut.
• Made of high-quality materials,it is durable,comfortable to wear and has a long service life.
• It is one of the must-have tools in the kit.

• Material: stainless steel
• Lead screw diameter: 8mm
• Screw pitch: 2mm
• Lead of thread: 8mm; Lead screw length: 300mm
• Package included: 1 x T8 Lead Screw; 1 x Copper Nut

• Low RDS (On) OutputAutomatic current decay mode detection / selection
• Mix with slow current decay modesSynchronous rectification for low power dissipationInternal UVLO
• Cross-current protection3.3 and 5 V compatible logic supply
• Thermal shutdown circuitryGround fault protectionLoad short-circuit protection
• Optional step five modes: full, 1/2, 1/4, 1/8 and 1/16

• Material: Aluminium
• D (Outside diameter): 19mm
• L (Inside Length): 25mm
• ID (Inside diameter) 8mm

• Power: 24 to 50V DC power supply,the capacity is not less than 200VA, the typical value is DC 36V
• Drive mode: dual-machine constant current PWM drive output
• Cooling method: natural cooling; Use occasion: avoid dust, oil mist and corrosive gas
• Environmental humidity: <80%RH, no condensation, no frost
• Product size: 115*76*34mm/4.53*2.99*1.34\"

• Completely solve the hot bed power is too large and the load current issue
• Under the premise of normal cooling, it work stable under I(Max)=20A, the current must not exceed 20A while the process working
• If you need anything greater or equal to 15A this module is a must! For example, if your total power usage is 240W and you have 12V power supply, then it means at least 20A is needed (20X12=240W).
• As ChiTu controller board is only capable of 15A this setting will not work. To make it work, you need this extra power module.

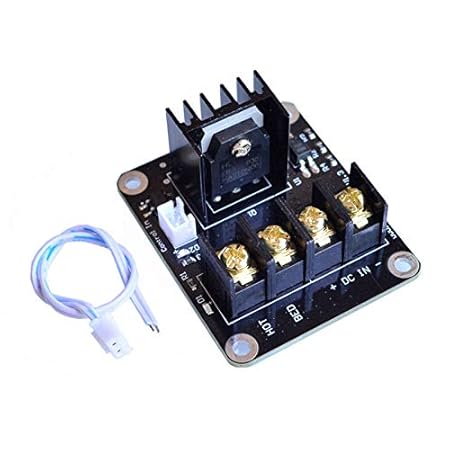

• Product description 3D Printer Heated Bed Power Module High Current 210A MOSFET Upgrade RAMPS 1.4
