• Solid carbide tools offer long tool life and faster cutting speeds than other substrates, but are more brittle and must be used with rigid toolholding systems

• Effective in drilling tough, high tensile strength materials like stainless steel, inconel and titanium
• 135 degree split point tip prevents drill from walking
• Round shanks allow use with a wide variety of tool holding systems
• Gold oxide is a thinner oxide surface treatment than black oxide typically used to identify cobalt steel tools; performance is similar to uncoated tools

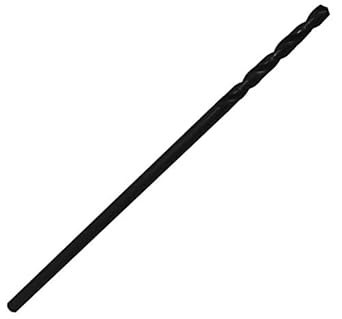

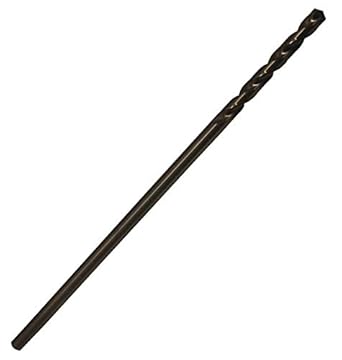

• 12\" overall length for drilling where extra length for reach is required

• High-speed steel tools are good for most general purpose applications, offering a combination of hardness and toughness for wear resistance
• Black oxide treatment adds lubricity and creates small pockets on the surface of the tool that act to hold coolant near the cutting edge
• Round shanks allow use with a wide variety of tool holding systems
• When run in a counterclockwise direction (right-hand cut) spiral fluted tools evacuate chips up and out of the cut to reduce clogging
• Manufactured to national aerospace standard 907

• Carbon Steel

• Carbon Steel

• Cutting Diameter 5\"; Hole Size 1-1/2\"
• Teeth 8; Use Insert APKT-11T304
• This 90 degrees major cutting edge angle square shoulder milling cutter is fitted with strong 11 degrees positive rectangular inserts allowing high depth of cut and feed per tooth. Screw M2.5x6
• Insert is not included; Accepts APKT Carbide Inserts
• Screw M2.5x6

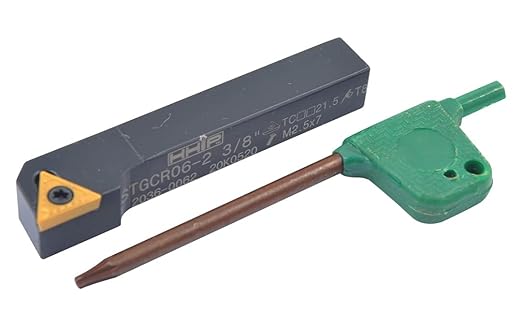

• Tool Holder Style 6-2; Shank 3/8; Length (Inch) 2-1/2
• Offset 1/2; Insert Style TCMT-21.51
• Screw M2.5x6
• 7 degrees Relief; 0-Degree Lead Angle

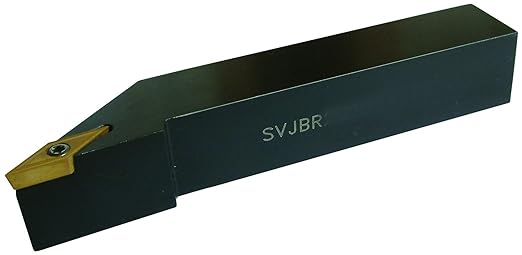

• Tool Holder Style 10-2B; Shank 5/8; Length (Inch) 4-1/2
• Offset 3/4; Insert Style VBMT-22
• Screw M2.5X6
• 5 degrees Relief; Negative 3-Degree Lead Angle

• Product Type:Cutting Tools
• Item Package Dimensions:11.684 cm L X 3.048 cm W X 3.048 cm H
• Item Package Weight:0.136 kg
• Country Of Origin: China

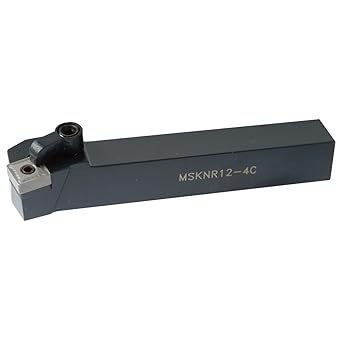

• Tool Holder Style 12-4C; Shank 3/4; Length (Inch) 5; Offset 1
• Insert Style SN..-43.; Shim S1203B; Lock Pin NL-0617; Clamp CL-12
• Clamp Screw XNS-0829
• 0 degrees Relief; 15-Degree Lead Angle

• Tool Holder Style 20-4D; Shank 1-1/4; Length (Inch) 6; Offset 1-1/2
• Insert Style CNMG-43; Shim C1203B; Lock Pin NL-0617; Clamp CL-12
• USE CNMA, CNMG & CNMM inserts; Clamp Screw XNS-0829
• 0 degrees Relief; Reverse 5-Degree Lead Angle for Turning and Facing
• Clamp Screw XNS-0829

• Provides longer life than uncoated grades.
• Screw on triangle style insert with a chipbreaker.
• 11 degree relief angle.
• Thickness is 3/32\".
• Radius is 1/164\".

• 41602420

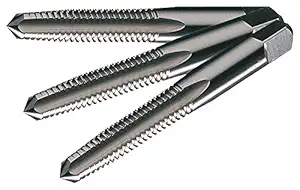

• Ground thread for economical tapping
• HSS substrate, bright finish
• Set includes taper, plug and bottoming chamfer of each size
• Made in the USA
