Electric Motors By CHANCS

• * It is a combination of motor, stand, drill B10 chuck,and 20A PWM speed controller, it can be used with saw blade to become a mini saw.
• *Motor specification: Rated Voltage: DC 12V, No-load speed: 10000RPM, Load speed: 8800RPM. Rated Voltage: DC 24V, No-load Speed: 20000RPM, Load Speed: 17600RPM Starting current: 4-5A Motor body diameter: 42mm, Motor body length: 66.5mm, Shaft length: 16mm, Shaft diameter: 5mm.
• *Bracket Specification: Length: 50mm, Width: 52mm, Height: 53mm, Mounting Hole Diameter: 4mm, Bracket Thickness: 3mm
• *The specification of the speed controller: Input voltage: DC 10V-DC 60V (ultra wide working voltage); Output voltage: linear under load; Control power: 0.01-1200W; Rated current: 10A; Maximum current: 20A (long-term use of 10A, 450W or less, make sure that the module is not subjected to heat dissipation conditions. ); PWM Duty Cycle: 0%-100%; PWM Frequency: 25Khz; Product Size (L x W x H): 77*45*28mm;
• * Drill clamp specifications: Model: B10 Base: 3 / 8 \"- 24unf material: metal main material; drilling clamp range: 1.5 - 10 mm; connecting rod length: 18 mm; drill clamp length: 60 mm; suitable for motors with 5 mm shafts.

• *This DC permanent magnet motor features small size, stable performance, high speed with low noise and CW/CCW rotation. Ball bearing, low friction, strong oil seal, high bearing capacity. It is an all-metal construction, so it is strong and durable. Two threaded connections for easy connection.
• *The specification of the motor: rated voltage: DC 12V, unloaded speed: 3500RPM, load speed: 2400RPM; rated voltage: DC 24V, idle speed: 7000RPM, load speed: 5100RPM; rated current: 2.42-3.37A; rated power: 30W; shaft: threaded shaft, size: 51*70mm; shaft diameter. 8mm; Wavlength: 38 mm, rotation: CW/CCW.
• *The specification of the bracket: Length: 57.5mm; Width: 41mm; Height: 51mm; The measured size may be subject to some errors.
• *Application: for electric fans, choppers, sprayers, small cutting machines, small table saws, money counters, printers, etc.
• *Package: 1 x DC motor, 1 x bracket

• *This DC permanent magnet motor features small size, stable performance, high speed with little noise and CW/CCW rotation. Ball bearing, small friction, strong oil seal, high bearing capacity It's all-metal construction, so it's strong and durable. Provide two threaded screw outlet for easy connection.
• *The specification of motor: Rated Voltage: DC 12V, Unloaded Speed: 3500RPM, Load Speed: 2400RPM Rated Voltage: DC 24V, Unloaded Speed: 7000RPM, Load Speed: 5100RPM;Rated Current:2.42-3.37A; Rated power : 30W; Shaft: Threaded Shaft, Size:51*70mm; Shaft diamater:8mm; Shaft length: 38mm, Rotation:CW/CCW.
• *Shaft: Threaded Shaft, Common Shaft, Minor Shaft, Hollow Shaft Size:51*70mm, Shaft diamater:8mm, Shaft length: 38mm, 45mm, 25mm, 20mm Rotation:CW/CCW.
• *This permanent magnet DC motor is for DIY generator.Need for external direct current governor, it can achieve speed adjustment function.
• *Application:Used for electric fan, shredder, sprayer, small cutting machine, small table saw, money counter, printer, etc.
• *Package : 1 x DC Motor

• This is a combination of 50KTYZ motor and stand. This sync motor is stable, durable and compatible. Long time use. Brackets are made of high quality mental material
• Motor Specifications: Shaft Diameter: 7mm; Shaft Length: 14.5mm; Operating Voltage: AC 220V; Speed: 30-36RPM; Frequency: ~50/60Hz; Power: 6W; Capacitor: 0.56uF; Tourk: ?2.5Kgf.cm; Rotation: CW/CCW (controllable);
• Bracket Specifications: Material: High Tensile Steel; Vertical Surface: 3mm Thick, 65mm Height; Baseboard: 65mm x 65mm; Motor Mounting Holes: 5.3mm, 4.0mm;
• Application:Suitable motor for home,handmade,school projects,models,lights,AD,etc. Mainly used for instruments, automation, glue, stage lamps, advertising devices, curtain automatic control, automatic voltage regulator, electrical imaging, etc
• Package included: 1 x Motor, 1 x Motor Bracket, 2 x Nuts, 2 x Screws

• *This is a Synchronous gear motor operates on AC 110V. Low noise and more robust. It is an electric motor widely used for household, hand-made, school project, model and anything else you want.
• *Model Type: 60KTYZ
• *Voltage: AC 110V, Speed: 5-6rpm, Power: 18W,Torque: ?40Kg.cm, Frequency: ~50/60Hz
• *Shaft Style: in center, Shaft Diameter: 7mm , CW/CCW (Controllable)
• *We can customize the synchronous motor you want,please email us the voltage and RPM.

• This is 370WG worm geared DC motor with zinc alloy aluminum housing and pure copper turbine and worm inside for greater durability.
• You can change the wiring of the motor positive or negative change the direction of rotation of the motor, using full metal gear, low noise, with self-locking function.
• Rated voltage: 12V DC ; Speed: 0.9RPM; Shaft: D-shaft ; Shaft Diameter:6mm ; Female thread diameter of shaft:3mm*12mm ; Total Shaft Length: 35mm ;
• Application: Label machines, remote control curtains, automatic voltage regulators, barbecue grills, ovens, washers, waste disposal machines, household appliances, coin machines, paper currency recognizers, automatic actuators, coffee machines, towel machines, printing machines and Stage lighting. This section is suitable for small motor configuration high speed ratio, the installation space is limited occasions, large torque output.
• \"-The speed, voltage can be designed according to customer requirements. If you need other models of motor, you can contact us by email. Welcome to bulk purchase and OEM orders!

• Working Voltage: AC 12V (NOT DC 12V)
• Speed: 5r/min
• Package?TYC-40 12V 5RPM AC Synchronous Motor Shaft 4.6cm *2PCS
• Shaft Length: 46mm;Shaft Diameter: 4.5mm?Motor diameter: 40mm;Motor height: 18.7mm;

• This is 370WG worm geared DC motor with zinc alloy aluminum housing and pure copper turbine and worm inside for greater durability.
• You can change the wiring of the motor positive or negative change the direction of rotation of the motor, using full metal gear, low noise, with self-locking function.
• Rated voltage: 6V DC Gear Ratio :90 Speed: 80RPM Torque :2kg.cm Shaft: D-shaft Shaft Diameter:6mm Female thread diameter of shaft:3mm*12mm Total Shaft Length: 21mm?
• Application: Label machines, remote control curtains, automatic voltage regulators, barbecue grills, ovens, washers, waste disposal machines, household appliances, coin machines, paper currency recognizers, automatic actuators, coffee machines, towel machines, printing machines and Stage lighting. This section is suitable for small motor configuration high speed ratio, the installation space is limited occasions, large torque output.
• The speed, voltage can be designed according to customer requirements. If you need other models of motor, you can contact us by email. Welcome to bulk purchase and OEM orders!

• *Description:This is a combination of a 370 turbine motor and a mounting bracket, the bracket as an additional support for your motors or as an alternative mounting option. You can change the wiring of the motor positive or negative change the direction of rotation of the motor, using full metal gear, low noise, with self-locking function.
• *Specification of motor:Rated voltage: 12V DC;Gear Ratio :588; Speed: 10RPM;Torque :?8kg.cm ;Shaft: D-shaft;Shaft Diameter:6mm; Female thread diameter of shaft:3mm*12mm; Total Shaft Length: 14mm;
• *Specification of bracket:Length: 38mm; Width: 46mm; Height: 30mm; Thickness?3mm; Material: high carbon steel; Standard or Nonstandard: Standard.
• *Package: 1 x 370WG DC Worm Gear Motor, 1 x bracket, 4x screws.
• *Application: Label machines, remote control curtains, automatic voltage regulators, barbecue grills, ovens, washers, waste disposal machines, household appliances, coin machines, paper currency recognizers, automatic actuators, coffee machines, towel machines, printing machines and Stage lighting.

• Working Voltage: AC 12V (NOT DC 12V)
• Shaft Diameter: 4.5mm;Shaft Length: 74mm
• Size: 4.2cmX4.2cmX2cm
• Speed: 5r/min
• Guarantee?Any quanlity problem,we guarantee 100% unconditional refund or resend service.

• This is a TYC-40 AC 12V 6RPM CW/CCW synchronous motor,small power consumption, low noise, small size, light weight, easy to use. The reduction gear is combination of metal/plastic to ensure the gear working continuously and quietly. We promise we will tested ever motor before shipment.
• Specification: Product Name : Synchronous Motor Model : TYC-40 Speed: 5RPM Shaft Diameter: 4.5mm Shaft Length: 74mm Shaft Screw Thread Inner Diameter: M3,(?2.8mm) Mounting Hole Diameter: M4 (?3.4mm) Motor diameter: 40mm;Motor height: 17.5mm;Direction : CW/CCW(UNCONTROLLAB) Torque:?0.5kg*cm Frequency : 50/ 60Hz?
• Application: Widely used in Christmas tree, decorative colored lights, hand-made, school project, electric fan shake heads, heaters, prayer cylinders, air conditioners, microwave ovens, glue machines, electric ovens, rotating lamps, electric tables, electric models, electric advertising, electric shelves, dishwashers, control appliances , curtain machines, etc.
• Attention: The applicable voltage of this motor is AC 12V, USING DC POWER SUPPLY, THE MOTOR DOES NOT WORK!! And too high voltage will burn the motor.If you can't judge whether your power supply is AC or DC, and you have any questions about the voltage, please ask the custcome service before buying the motor.
• Package Content:2PCS x Synchronous Motor

• *This is a motor that can be used in a small solar energy production. The motor comes with a wire that can be soldered to the solar panel for use.
• *The motor has low noise, stable operation and is perfect for powering solar panels, only a little sunlight is needed to drive this motor.
• *Type: 300 DC Motor;Size: 24*12mm;Shaft Diameter: 2mm;Shaft Length: 9.5mm; The motor comes with a wire length of about 25cm, which can be cut according to your needs.
• *Fixed hole diameter: 1.6mm; Fixed hole distance: 16mm
• *Voltage: 3V, Speed: 2500RPM;No-load current: 0.06A, blocking current 0.46A;

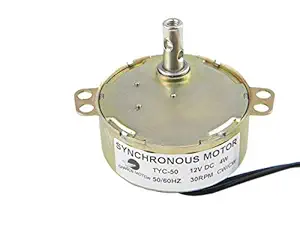

• *Model : TYC-50; Shaft Diameter: 7mm ; Shaft Length: 16mm; Direction : CCW/CW(uncontrollable); Voltage : DC 12V; Speed : 30-36RPM; Power : 4W;Torque:?1kgf.cm; Frequency : 50/ 60Hz; Package Content : 1 x Synchronous Motor, 1 x Conversion Module
• *This is a TYC-50 DC 12V 30-36RPM synchronous motor,small power consumption, low noise, small size, light weight, easy to use. The reduction gear is combination of metal/plastic to ensure the gear working continuously and quietly. We promise we will tested ever motor before shipment.
• *Widely used in hand-made, school project, electric fan shake heads, heaters, Christmas tree, prayer cylinders, air conditioners, microwave ovens, glue machines, electric ovens, rotating lamps, electric tables, electric models, electric advertising, electric shelves, dishwashers, control appliances , curtain machines, etc.
• *Motor shaft, line length, speed, voltage can be designed according to customer requirements. If you need other models of motor, you can contact us. Welcome to bulk purchase and OEM orders!
• *Attention: The applicable voltage of this motor is DC 12V, using AC power supply, the motor does NOT work; too high voltage will burn the motor.If you can't judge whether your power supply is AC or DC, and you have any questions about the voltage, please ask the custcome service before buying the motor.

• This is a TYC-50 AC 12V 5-6RPM CCW synchronous motor,small power consumption, low noise, small size, light weight, easy to use. The reduction gear is combination of metal/plastic to ensure the gear working continuously and quietly. We promise we will tested ever motor before shipment.
• Specification Product Name: Synchronous Motor; Model:TYC-50; Shaft Diameter:7mm ; Shaft Length: 16mm; Directio:CW; Voltage:AC 12V; Speed:5-6RPM;Power:4W;Max Torque:?4.8kg.cm; Frequency:50/ 60Hz;Package Content :1 x Synchronous Motor;
• Application Widely used in hand-made, school project, electric fan shake heads, heaters, Christmas tree, prayer cylinders, air conditioners, microwave ovens, glue machines, electric ovens, rotating lamps, electric tables, electric models, electric advertising, electric shelves, dishwashers, control appliances , curtain machines, etc.
• About customMotor shaft, line length, speed, voltage can be designed according to customer requirements. If you need other models of motor, you can contact us to check your inventory. Welcome to bulk purchase and OEM orders!
• Attention The applicable voltage of this motor is AC 12V, using DC power supply, the motor does not work; too high voltage will burn the motor.If you can't judge whether your power supply is AC or DC, and you have any questions about the voltage, please ask the custcome service before buying the motor.
