Electric Motors By RATTMMOTOR

• Air Cooled Spindle-- Power: 500W; Idling Speed: 2000-12000r/min; Torque?0.5NM; Diameter: 52mm.
• Speed Controller: Input Voltage: AC100-AC220V?10% Global voltage 50/60Hz; Current Limit: 6A; Wiring: Terminal type (Convenient and fast).
• Adopt pulse width technology to make the speed more stable, and the speed is high under low speed.
• With overcurrent protection cut-off device to make performance more reliable; With a soft start device to eliminate motor starting current is too large.
• Note: This motor has quiet operation, small volume and high speed, and the rear end of the motor is reinforced with a cooling fan, which can be safely worked for a long time!

• Motor specifications: Holding Torque:3N.m; Current:5A; Phase:2; Size:60x60x88mm; Step Angle:1.8 degree; Motor Lead Wire: 4-wire; Encoder lines:1000
• 2HSS60 Driver: 2-Phase Hybrid Stepper Servo Driver; Frequency:0-200KHz; Insulation resistance:>=500M?; Voltage: DC 24-50V input
• Advantages: Stepper motor closed loop system,never lose step; The stepper motor control has a new generation of 32-bit DSP. The vector control technology can ensure the accuracy of the motor; Improve motor output torque and working speed; Automatic current adjustment based on load; Pulses response frequency can reach 200KHZ; 16 kinds microsteps choice,highest 51200microsteps/rev
• More Functions: It supports over-current protection, over-voltage protection, position outside the tolerance protection.The build-in place in position and alarm output signal can help the upper monitor to monitor and control,the function of position ultra difference alarm can ensure the machine work safely
• Widely used: Closed loop stepper system can be applied to all kinds small automatic equipment and instrument. Such as engraving machine, special industrial sewing machine, stripping machine, marking machine, cutting machine, graph plotter, cnc machine, automatic assembly equipment and so on.This motor driver kit fits all types of machine load conditions including pulley and low stiffness pulley without adjusting the gain parameters

• Model Number:CW8060
• Driver microstep:256 microstep
• Driver input voltage:24-80VDC
• Driver current:6.0A
• Motor Type:Nema23-34 Stepper Motor

• Power: 300W; Operating Voltage: 12-48VDC
• Diameter: 52mm; Total length of motor:175mm
• Speed: Idling speed can reach 12000RPM
• Frequency: 0-400Hz Torque: 400mN.m
• Applications: Can be used for engraving wood/plastic/acrylic/ pvc/pcb/carbon fiber/density board and other materials.

• Model Name: Mach3 USB Motion Card; 4-axis linkage, Maximum step-pulse frequency: 100KHz, support connect four stepper motor drives or servo drives.
• This USB motion card does not need install any USB driver, Windows2000/XP/Windows7,can directly identify (Notice: Doesn't support Win8/win10/macOS system !!!) .
• Signal Output:0-10V, it can control the spindle motor speed through using mach3 software.
• If you are not familiar with the product and software features, make sure the machine's power switch on hand, you can quickly turn off the power.
• Recommends that users install the emergency stop button and make sure the button is functioning properly.

• Model: FMD2740C; Input Voltage: 18V-50V DC; Recommended the user to use the 24V-36V DC supply; Output Current: 1.4-5.6A
• 256 Subdivision: 400,800,1600,3200,6400,12800,25600,1000,2000,4000,5000,8000,10000,20000 and 25000 optional
• Suitable stepper motors: The FMD2740C driver can drive all hybrid stepper motors which current is less than 5.6A 4-wire, 6-wire or 8-wire,2-phase or 4-phase,mainly used to run Nema 17,Nema23 and Nema24 Stepper Motor
• Features: Bipolar constant current chopping mode;20kHz chopping frequency;Electrical input signal is TTL compatible;Stationary current is automatically reduced by half
• Advantages: Adopting a new bipolar constant current chopper drive technology,it outputs higher speed and power;Segments stepper motor running accuracy improved,reduces vibrations and noise reduction;High-speed optocoupler signal isolation input

• Compared with the aluminium profile fixture,the accuracy is much higher, and it is hard to deform.
• 3kw Spindle motor mount bracket clamp.
• Material: Aluminum,Surface sandblasted.
• Fit for : CNC 100mm diameter high-speed spindle motor.
• Cast aluminium fixture is much heavier than aluminium profile fixture.

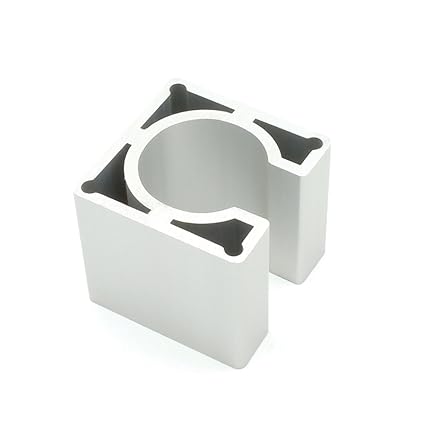

• Fit:for Nema23 stepper motor
• Usage:Stepper Motor Bracket
• Material:Aluminum alloy
• Standard or Nonstandard:Standard
• Name:NEMA23 57 Stepper Motor bracket
