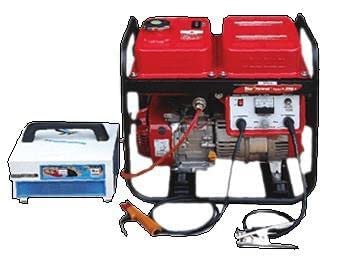

HIMALAYAN POWER MACHINE WELDING GENERATOR HPW 250 D WITH AC POWER

By Brand : HIMALAYAN POWER MACHINE MFG CO

Avg Customer Reviews :

NO WARRANTY NO GUARANTEE ON INVETOR HIMALAYAN POWER MACHINE WELDING GENERATOR HPW 250 D WITH AC POWER Special Highlights & Applications Worlds Most Portable, Professional & Low Cost Arc Welding Machine Suitable for High Class Welding Including Structural Welding Rods 7018 Size 4mm Electrode. Maximum Output (Duty Cycle 60%) 225 Amps. Welding Output at 100 % duty Cycle 175 Amps Working Voltage 20v to 32v Open Circuit Voltage 70 Volt (Maximum) Current Regulation Amps *50-225 Rectifying Mode SCR, Phase Controlled 3-phase, Rectifying Bridge Maximum Electrode diameter 2.6 mm to 4.0 mm (E 7018) Alternator Type Multiphase, Brush less with Rear Earth Magnet Rotor engine Model HM170FB Type Single Cylinder Air-cooled; 4-stroke, OHV 25? Inclined Maximum Power 7.5 HP Bore x Stroke 70x58 Displacement 223cc Starting System Recoil Start Ignition System TCI (Transistor Control Ignition) Petrol Fuel Tank Capacity 12 Liters Fuel Consumption (at 60 % Duty Cycle) 1.0Ltr./hr. Continuous Operating Hour 12 hr. Lube. Oil Capacity 600 ml. Lubricating Oil Consumption 2.5 gm./Hr. Tool Kit 1 Set Welder Holder 1 Set Earthing Clamp with 3Mtr. Cable 1 Set Oil Funnel 1 No. Owners Manual 1 No. Aux. AC Output 230 Volt - 50 Hz Invertor 2.0 KVA 230 Volt AC, 50 Hz (Optional) Overload Protection (NFB) Yes (Inverter) Power Indicator No Ampere Meter Yes Engine Oil Protection Yes (Electronic Oil Alert & Indicator) Fuel Level Gauge Yes Dimension LxWxH (mm) 60x45x53cm Dry Weight (Kgs.) 50 Kg
