Electricals - Electrical - Meter Products

• Standard DIN rail installation, in line with standard DIN EN50022, expansion terminal cover to protect the safety of use
• Direction measures AC active energy consumption, the direction of load current flow is irrelevant
• With excellent long??term reliability, small size, light weight, perfect appearance, easy installation, etc
• Adopt microelectronic technology, and large??scale integrated circuit, adopt advanced digital technology and SMT technology, etc
• Can directly and accurately measure the active power consumption of the load in a single??phase AC with a rated frequency of 50 Hz

• Dedicated large-scale integrated circuits and SMT technologies for metering electrical energy to ensure metering accuracy and reliability

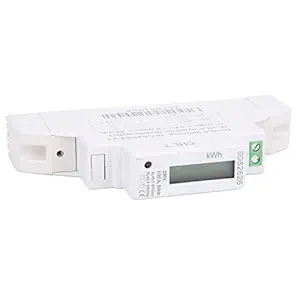

• Single-phase electronic energy meter is used to measure single-phase AC active energy with rated frequency of 50Hz and rated voltage of 220V
• Good reliability, small size, light weight, beautiful appearance and advanced technology
• 5+1 digit wide temperature LCD display, clear numerical display, easy reading
• 35mm standard rail mounting method, easy to install

• May select 5+1LCD digits display (99999.1kWh)

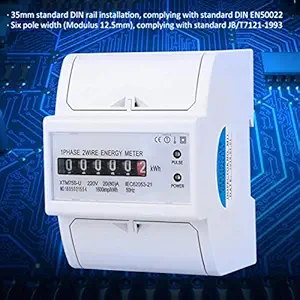

• Six pole width (Modulus 12.5mm), complying with standard JB/T7121-1993
• Standard configuration short terminals cover, may select extension terminals cover, in order to protect to use safely
• 35mm standard DIN rail installation, complying with standard DIN EN50022
• Single direction measure single phase two wire active energy consumption. It is nothing with direction of the flow of load current. Complying with standard IEC 62053-21

• Good reliability, small size, light weight, beautiful appearance and advanced technology
• Single-phase electronic energy meter is used to measure single-phase AC active energy with rated frequency of 50Hz and rated voltage of 220V
• 5+1 digit wide temperature LCD display, clear numerical display, easy reading
• Dedicated large-scale integrated circuits and SMT technologies for metering electrical energy to ensure metering accuracy and reliability
• 35mm standard rail mounting method, easy to install

• Stable performance and high accuracy
• Rail mounted for easy installation,saves effort
• Simultaneous display of AC voltage and current power factor
• When the current is less than 100A, the current display resolution is 0.01A. When the current is greater than 100A, the current display resolution is 0.1A, and the range is automatically converted
• The voltage shows 4-digit red 0.31 inch LED digital tube, the current and time display adopts 5-digit red 0.31 inch LED digital tube active power, and the electric energy (electricity) display adopts 5-digit green 0.31 inch LED digital tube

• Standard configuration pulse output passivity (polarity), can choose far pulse output passivity (non-polarity), and easy contact with various AMR systems, in line with the standard IEC 62053-31 and DIN 43864
• 35mm standard DIN - track installation, in line with the standard DIN EN50022
• The technical performance of the product fully meets the requirements of Class 1 active watt-hour meter in the international standard IEC 62053-21
• DTM123SC three-phase electronic power meter is a new generation of smart meter which is made of large integrated circuit, advanced digital technology and SMT technology
• Standard configuration 6+1 backlight LCD (9999999.1KWh)

• Products are widely used in power metering systems

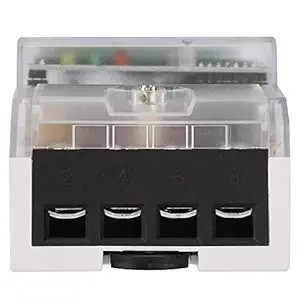

• This product adopts transparent shell, which is convenient to observe the operation status of electronic components inside the meter
• LCD backlight display is used to read data clearly
• The power consumption of the product is very low. The theoretical power consumption is less than or equal to 2 W
• The product has stable performance and can run steadily in the range of -20-55 degrees Celsius

• LCD display: equipped with a LCD screen displaying digital readings, which is easy to read
• Auto loop display four data: the readings of energy consumption, voltage, current and power will be automatically switched in the screen, each one stays for 6 seconds
• Quality material and high accuracy: retardant housing to ensure safety, SMT chip technology integrated circuit provides accurate measurement, excellent conductivity, corrosion resistance, and stable performance
• Compact and user-friendly: 35mm rail for installation, and can be directly installed in the electric box, occupying only 2P position
• Warranty not applicable for this product

• DTM125SC three-phase electronic power meter is a new generation of smart meter which is made of large integrated circuit, advanced digital technology and SMT technology
• Ten widths (modulus 12.5mm), in line with DIN43880 standard
• Standard configuration pulse output passivity (polarity), can choose long-range pulse output passivity (non-polarity). It is easy to contact with various AMR systems and meets the standard IEC 62053-31 and DIN43864
• This product adopts standard configuration 6+1 (999999.1KWh) LCD
• 35mm standard DIN - track installation, in line with the standard DIN EN50022

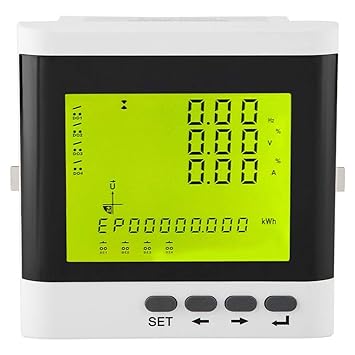

• Suitable for complete monitoring and management on the electrical parameters of various incoming loops and large-capacity distribution output loops
• Multi-function power meter measurement for three-phase voltage, current, active power, reactive power, power factor, grid frequency, active energy and reactive energy
• LCD digital display with high brightness presents three-phase current or voltage value stimutaneously
• Good accuracy, strong stability, four buttons design, enables the instrument to achieve convenient and flexible use
• Premium ABS housing, superior flame retardant properties, easy wiring

• Dedicated large-scale integrated circuits and SMT technologies for metering electrical energy to ensure metering accuracy and reliability
• 5+1 digit wide temperature LCD display, clear numerical display, easy reading
• 35mm standard rail mounting method, easy to install
• Single-phase electronic energy meter is used to measure single-phase AC active energy with rated frequency of 50Hz and rated voltage of 220V
• Good reliability, small size, light weight, beautiful appearance and advanced technology

• Warranty not applicable for this product
• Quality Product
• 100% Brand New
• Durable and Eco-friendly Material.
• In case of any query please contact seller.

• Direct connection operation, you can choose two connection modes. Standard configuration S-type wiring, U-type wiring can be selected.
• DTM125S three-phase electronic power meter is a new generation of smart meter which is made of large integrated circuit, advanced digital technology and SMT technology.
• 10 width (modulus 12.5 mm), in line with DIN43880 standard.
• The technical performance of the product fully meets the requirements of Class 1 active watt-hour meter in the international standard IEC 62053-21.
• 35mm standard DIN - track installation, in line with the standard DIN EN50022.

• LCD display, easy to read values
• Display and memory accumulative total power quantity
• Display and memory total power of price
• Can set the price of electricity by pressing "SET" button
• Data clear: press and ld "MODE" button for 5s then will clear data of KWH, PRICE and COST/KWH

• Small size, light weight, good reliability and easy installation.
• Quadrupole width (modulus 12.5mm), in line with GB/ t7121-1993 standard.
• 35mm standard DIN-rail mounting in accordance with standard DIN EN50022.
• Standard configuration 5+1(99999.1KWh) digital display.
• The standard configuration pulse output is passive (polar) and the remote pulse output can be selected as passive (non-polar). It is easy to contact with various AMR systems and conforms to the standards IEC 62053-31 and DIN43864.

• Small and Light: Good reliability, small volume, light weight, specious nice appearance
• Good Quality Durable and Eco Friendly Material.
• 100% Brand New
• Package Contain Pack Of 1 Item.
• In case of any query please contact seller.
