Electricals - Electrical - Meter Products

• Equipped with a polarity passive energy impulse output terminal, conforming to Standards IEC 62053-31 and DIN 43864
• Can select the step motor impulse register of 5+1 digits (99999.1kWh)
• Bipolar width, complying with standard DIN43880
• The short terminal cover is made with the transparent PC, to reduce the installation space and is convenient for centralized installation
• 35mm DIN standard rail mounted, conforming to Standards DIN EN 50022

• This meter is suitable for the measurement of rated frequency 50 Hz single-phase ac active electricity, used for fixed installation indoors, apply to the environment temperature is -25 ? ~ 55 ?, relative humidity is ? 95%, and in the air does not con
• It features high reliability, small volume, light weight, beautiful appearance, advanced technology, and 35mmDIN standard guide rail installation, etc
• It has good anti-electromagnetic interference, low power consumption, high precision, high overload, high stability, anti electricity-stolen and long life
• The meter is fully in conformity with the relevant technical requirements of GB/T17215.321-2008 national standard and the IEC62053 international standard of grade 1 or level 2 single-phase energy meter, which can directly and accurately measure active en
• LCD display is 6+1 meter shows the total power consumption

• ?LCD display is 7+1 or6+1meter shows the total power consumption
• ?It features high reliability, small volume, light weight, beautiful appearance, advanced technology, and 35mmDIN standard guide rail installation, etc
• ?It has good anti-electromagnetic interference, low power consumption, high precision, high overload, high stability, anti electricity-stolen and long life
• ?This table is suitable for the measurement of rated frequency 50 Hz or 60 Hz single-phase ac active electricity, used for fixed installation indoors, apply to the environment temperature is -25 ? ~ 55 ?, relative humidity is ? 95%, and in the air does not contain corrosive gases and avoid dust, mold, salt fog, condensation, insects, etc
• ?The meter has photoelectric coupling type electric pulse test output port, located in terminal button box (as shown in figure 2), + 5 VDC of the test equipment connected to 20" + "terminal, signal S connected to 21"-" terminal

• Single Phase Electric Meter LCD display is 7+1 or 6+1 meter shows the total power consumption
• Din-rail Energy Meter has good anti-electromagnetic interference, low power consumption, high precision, high overload, high stability, anti electricity-stolen and long life
• The Electric Meter is international standard of grade 1 or level 2 single-phase energy meter, which can directly and accurately measure
• DIN-Rail Electric Meter features high reliability, small volume, light weight, beautiful appearance, advanced technology, and 35mmDIN standard guide rail installation, etc
• This table is suitable for the measurement of rated single-phase ac active electricity, used for fixed installation indoors, apply to the environment temperature is -25 ?? ~ 55 ??, relative humidity is ? 95%, and in the air does no

• Direct connection operation, you can choose two connection modes. Standard configuration S-type wiring, U-type wiring can be selected
• DTM125S three-phase electronic power meter is a new generation of smart meter which is made of large integrated circuit, advanced digital technology and SMT technology
• 10 width (modulus 12.5 mm), in line with DIN43880 standard
• 35mm standard DIN - track installation, in line with the standard DIN EN50022
• The technical performance of the product fully meets the requirements of Class 1 active watt-hour meter in the international standard IEC 62053-21

• The short terminal cover is made with the transparent PC, to reduce the installation space and is convenient for centralized installation
• Equipped with a polarity passive energy impulse output terminal, conforming to Standards IEC 62053-31 and DIN 43864
• Can select the step motor impulse register of 5+1 digits (99999.1kWh)
• Bipolar width, complying with standard DIN43880
• 35mm DIN standard rail mounted, conforming to Standards DIN EN 50022

• Display Type: LCD with Backlight
• Electrical Connection: 1Ø - 2W, 3Ø - 3W, 3Ø - 4W
• Type of Output: Two Pulse Outputs
• Communication Protocol: RS485 and MODBUS RTU
• Size: 70 x 90mm

• The meter is fully in conformity with the relevant technical requirements of GB/T17215.321-2008 national standard and the IEC62053 international standard of grade 1 or level 2 single-phase energy meter, which can directly and accurately measure active en
• LCD display is 7+1 or6+1meter shows the total power consumption
• It features high reliability, small volume, light weight, beautiful appearance, advanced technology, and 35mmDIN standard guide rail installation, etc
• It has good anti-electromagnetic interference, low power consumption, high precision, high overload, high stability, anti electricity-stolen and long life
• This table is suitable for the measurement of rated frequency 50 Hz or 60 Hz single-phase ac active electricity, used for fixed installation indoors, apply to the environment temperature is -25 ? ~ 55 ?, relative humidity is ? 95%, and in the air does no

• When the current is less than 100A, the current display resolution is 0.01A. When the current is greater than 100A, the current display resolution is 0.1A, and the range is automatically converted
• Rail mounted for easy installation,saves effort

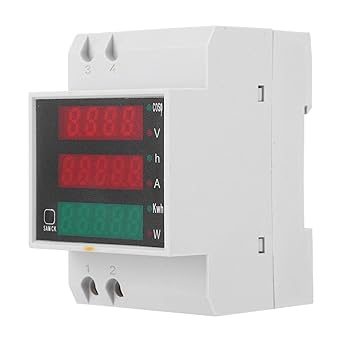

• The voltage shows 4-digit red 0.31 inch LED digital tube, the current and time display adopts 5-digit red 0.31 inch LED digital tube active power, and the electric energy (electricity) display adopts 5-digit green 0.31 inch LED digital tube
• Simultaneous display of AC voltage and current power factor
• Stable performance and high accuracy

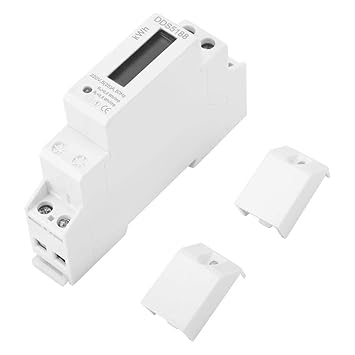

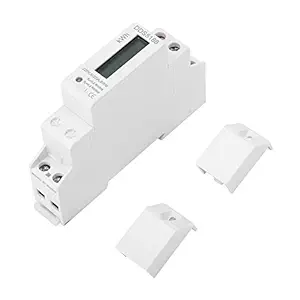

• Single-phase electronic energy meter is used to measure single-phase AC active energy with rated frequency of 50Hz and rated voltage of 220V.
• 5+1 digit wide temperature LCD display, clear numerical display, easy reading.
• Good reliability, small size, light weight, beautiful appearance and advanced technology.
• 35mm standard rail mounting method, easy to install.
• Dedicated large-scale integrated circuits and SMT technologies for metering electrical energy to ensure metering accuracy and reliability.

• Digital display electric energy meter with LCD display, which can be displayed directly
• Adopt 35mm DIN rail installation, wiring mode is UP?OUT and DOWN?IN/UP?IN and DOWN?OUT
• Electronic metering, high accuracy, small error, no need to adjust for long?term use
• Multi?purpose, support to display power, voltage, current, frequency, power factor
• Large?scale integrated circuit and precise SMT technology, strong anti?electromagnetic interference ability

• Dedicated large-scale integrated circuits and SMT technologies for metering electrical energy to ensure metering accuracy and reliability
• Single-phase electronic energy meter is used to measure single-phase AC active energy with rated frequency of 50Hz and rated voltage of 220V
• Good reliability, small size, light weight, beautiful appearance and advanced technology
• 5+1 digit wide temperature LCD display, clear numerical display, easy reading
• 35mm standard rail mounting method, easy to install

• 35mm DIN Rail mounting meets the standards of DIN EN50022.Large scale integrated circuits and precision SMT technology, with good electromagnetic interference resistance and stable performance
• 17.5mm pole width meets the standards of DIN43880.Embedded end cover, ensuring power supply safety
• LCD digital display, no reset button, to avoid human manipulation with the data
• It displays electricity, voltage, current, frequency and power.Adopt microelectronics and digital processing technology to measure electric energy, accurate and reliable
• Red LED energy pulse signal.With the features of good reliability, small size, light weight, beautiful appearance and easy installation

• May select 5+1LCD digits display (99999.1kWh)
• Six pole width (Modulus 12.5mm), complying with standard JB/T7121-1993
• 35mm standard DIN rail installation, complying with standard DIN EN50022
• Standard configuration short terminals cover, may select extension terminals cover, in order to protect to use safely
• Single direction measure single phase two wire active energy consumption. It is nothing with direction of the flow of load current. Complying with standard IEC 62053-21

• Apply to the environment temperature of -25 ?? ~ + 55 ??, relative humidity is not more than 95%, and in the air without corrosive gases and avoid dust, mold, salt fog, condensation, insects, etc
• This meter is suitable for the measure the 3-phase AC efficient electrical energy of rated frequency 50Hz,used for fixed installation indoors
• It has the advantages of convenient meter reading, high reliability, small volume, light weight, beautiful appearance, advanced technology
• Installation of 35mmDIN standard guide rail
• It has good anti??electromagnetic interference, low power consumption, high accuracy, high overload, high stability, anti ?? theft and long life

• Class 1.0 accuracy,polycarbonate box
• Double side PCB with SMT components
• Not effect by enternal magnet
• low power consumption
• ISI marked
