Pipes & Fitting - Composite By SHIVLAHERI

• Product Name: 10MM Barb Hose Fitting. Size: 10mm barb(Fit Hose ID); Total Size: 48mm x 10mm (L*W).
• Barbed barb hose fitting has two openings for connecting 10mm tube fitting.
• The brass Barb union coupling for connecting two hoses with the same diameter in a straight run.This fitting is made of brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability.
• Barbed fitting creates a tight seal on flexible and semi-rigid hose. Commonly used to connect lines for air, water, fuel, oil and inert gases in a quick and simple way.
• Brass Brass Barb Splicer Fitting made of brass, Brass has corrosion resistance, ductility at high temperatures, and low magnetic permeability,etc.

• Made of high quality material ensures high pressure resistance and a long service life.Push To Connect pneumatic push Fitting hose pipe water connector 6mm to 4mm.
• Recommended tubing material: Polyurethane, Nylon, Polyethylene, Polypropylene. compressed air quick connect fittings.
• Quick and simple installation, no special tools required.
• All tube thread pre-coated polytef leakproof gum, with excellent sealing property.
• One-touch release button(blue parts on each side), easy to assemble and disassemble.

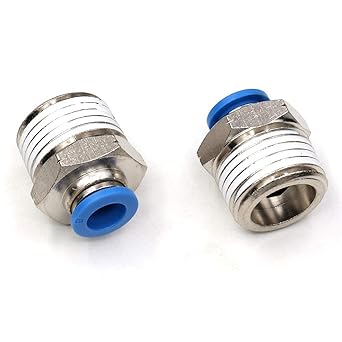

• Type:PC 8mm Tube Od x 1/2" NPT Thread Push to Connect Air Fittings; Body Style: Male Straight,quick and Reliable connections; Fluid Admitted: Air, Water (No Freezing)
• Working Pressure:0-1.0mpa | 0-150psi; Proof Pressure:3.0Mpa | 435psi; Negative Pressure:-100Kpa | -29.5 In Hg; Applicable: Pipe PU/ PA/ PE/ PVC; Working Temperature: 0-60 degreeC | 32?140 degreeF
• Body and collar are made of Nylon 6.6, gripping ring is stainless steel, D seal and O-rings are Nitrile- corrosion resistance, ductility;The Stainless steel gripping ring ensures excellent tube retention while the D seal within the fitting provides a positive seal on the O.D. of the tube in both static and dynamic positions, due to an optimized design of the fitting cavity.
• All items in Pneumatic composite range are silicone free,Elliptical sleeve help to connect tube easily by manual, no special tools required,Outside (Inside where applicable) hexagonal wrench tightening.
• This Quick fittings are only used for industrial automatic apparatus and can not be applied on any medicinal equipment.

• Product Name : Pneumatic Brass Connector Model : PC12-04 Tube and Thread Size : 12mm OD x 1/2" G
• Operating Pressure : 0-0.9MPa ; Operating temperature0 - 60 Degree Celsius
• Vacuum: 0-29.5 inches Hg / 750mm Hg
• Have abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.
• The joint is firm, convenient to connect, and not easy to loosen

• Type:12MM Od x 1/2" NPT Thread Push to Connect Fittings; Body Style: Male Straight
• 12MM Pneumatic Pu Connector 1/2 inch Tube Air Fittings Fluid Admitted: Air, Water (No Freezing)
• Brass Pneumatic connector 1/2 Air Fittings Working Pressure:0-1.0mpa | 0-150psi; Proof Pressure:3.0Mpa | 435psi; Negative Pressure:-100Kpa | -29.5 In Hg
• Pneumatic Air Tube 1/2" od Applicable: Pipe PU/ PA/ PE/ PVC; Working Temperature: 0-60 degreeC | 32?140 degreeF
• Push to connect air fittings 1/2 is made of Nickel Plated Brass and quality plastic- corrosion resistance, ductility

• Made of high quality material ensures high pressure resistance and a long service life.Push To Connect pneumatic push Fitting hose pipe water connector 10mm to 10mm.
• Recommended tubing material: Polyurethane, Nylon, Polyethylene, Polypropylene. compressed air quick connect fittings.
• Quick and simple installation, no special tools required.
• All tube thread pre-coated polytef leakproof gum, with excellent sealing property.
• One-touch release button(blue parts on each side), easy to assemble and disassemble.

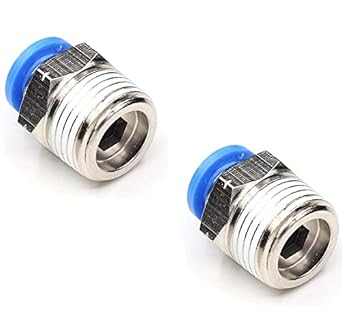

• Type:6MM Od x 1/2" NPT Thread Push to Connect Fittings; Body Style: Male Straight
• 6MM Pneumatic Pu Connector 1/2 inch Tube Air Fittings Fluid Admitted: Air, Water (No Freezing)
• 6mm Brass Pneumatic connector 1/2 Air Fittings Working Pressure:0-1.0mpa | 0-150psi; Proof Pressure:3.0Mpa | 435psi; Negative Pressure:-100Kpa | -29.5 In Hg
• Pneumatic Air Tube 1/2" od Applicable: Pipe PU/ PA/ PE/ PVC; Working Temperature: 0-60 degreeC | 32?140 degreeF
• Push to connect air fittings 1/2 is made of Nickel Plated Brass and quality plastic- corrosion resistance, ductility

• Made of high quality material ensures high pressure resistance and a long service life.Push To Connect pneumatic push Fitting hose pipe water connector 4mm to 4mm.
• Recommended tubing material: Polyurethane, Nylon, Polyethylene, Polypropylene. compressed air quick connect fittings.
• Quick and simple installation, no special tools required.
• All tube thread pre-coated polytef leakproof gum, with excellent sealing property.
• One-touch release button(blue parts on each side), easy to assemble and disassemble.

• Type:10MM Od x 1/2" NPT Thread Push to Connect Fittings; Body Style: Male Straight
• 10MM Pneumatic Pu Connector 1/2 inch Tube Air Fittings Fluid Admitted: Air, Water (No Freezing)
• Brass Pneumatic connector 1/2 Air Fittings Working Pressure:0-1.0mpa | 0-150psi; Proof Pressure:3.0Mpa | 435psi; Negative Pressure:-100Kpa | -29.5 In Hg
• Pneumatic Air Tube 1/2" od Applicable: Pipe PU/ PA/ PE/ PVC; Working Temperature: 0-60 degreeC | 32?140 degreeF
• Push to connect air fittings 1/2 is made of Nickel Plated Brass and quality plastic- corrosion resistance, ductility

• 1.Quick and simple installation,designed for using to connect with polyethylene, nylon and PU tubing. Even if installed, the tube can be rotated 360 degrees, which is simple and flexible. A good release cap can withstand greater and stronger pressure without tripping. Pneumatic joints do not fall off under high pressure and are safe and reliable.
• 2.Have flexibility, abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life. Simple to push in with air pressure for connecting pipes and providing a secure connection without additional sealing.
• 3.Easy to install, insert the plastic tube, the cap can be rotated freely, but its rotation is only used when the angle is wrong when the joint is installed. Used to connect polyethylene, nylon and PU tubes. Mainly used for quick connection of air pipes, pneumatic tools, pipe connection or disconnection without tools.
• 4.Two small tube in the side is use for fixed.

• Type:PC 8mm Tube Od x 1/2" NPT Thread Push to Connect Air Fittings; Body Style: Male Straight,quick and Reliable connections; Fluid Admitted: Air, Water (No Freezing)
• Working Pressure:0-1.0mpa | 0-150psi; Proof Pressure:3.0Mpa | 435psi; Negative Pressure:-100Kpa | -29.5 In Hg; Applicable: Pipe PU/ PA/ PE/ PVC; Working Temperature: 0-60 degreeC | 32?140 degreeF
• Body and collar are made of Nylon 6.6, gripping ring is stainless steel, D seal and O-rings are Nitrile- corrosion resistance, ductility;The Stainless steel gripping ring ensures excellent tube retention while the D seal within the fitting provides a positive seal on the O.D. of the tube in both static and dynamic positions, due to an optimized design of the fitting cavity.
• All items in Pneumatic composite range are silicone free,Elliptical sleeve help to connect tube easily by manual, no special tools required,Outside (Inside where applicable) hexagonal wrench tightening.
• This Quick fittings are only used for industrial automatic apparatus and can not be applied on any medicinal equipment.

• Made of high quality material ensures high pressure resistance and a long service life.Push To Connect pneumatic push Fitting hose pipe water connector 4mm to 4mm.
• Recommended tubing material: Polyurethane, Nylon, Polyethylene, Polypropylene. compressed air quick connect fittings.
• Quick and simple installation, no special tools required.
• All tube thread pre-coated polytef leakproof gum, with excellent sealing property.
• One-touch release button(blue parts on each side), easy to assemble and disassemble.

• Product Type:8mm Od x G1/4" BSP Female Push to Connect Fittings; Body Style: Female Straight. The quick fitting is designed for Polyurethane or Nylon tubing. Even after installation, the direction of the tube can be changed freely. Fit Tube OD: 8mm; Male Thread Size: G1/4PT.
• 8MM Pneumatic connector G1/4 inch Tube Air Fittings Fluid Admitted: Air, Water (No Freezing) Push-to-connect tube connection on one end and male G threads on the other end.
• Pneumatic connector 6mm G1/4 Air Line Quick Connect Working Pressure:0-1.0mpa | 0-150psi; Proof Pressure:3.0Mpa | 435psi; Negative Pressure:-100Kpa | -29.5 In Hg. A good release cap can withstand greater and stronger pressure without tripping
• Push to Pneumatic connector G1/4 Air Line Quick Connect Working Pressure:0-1.0mpa | 0-150psi; Proof Pressure:3.0Mpa | 435psi; Negative Pressure:-100Kpa | -29.5 In Hg. Have abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.
• 8mm Pneumatic Connector Push to connect air fittings G1/4 is made of Nickel Plated Brass and quality plastic- corrosion resistance, ductility Elliptical release ring help to connect tube easily by manual, no special tools required.
