Bearings By INVENTO

• Model : 628ZZ
• Diameter : 8mm (on which bearing rotates)
• Bearing height : 8mm
• Bearing inside diameter : 8mm
• Bearing outside diameter : 24mm

• Model: LM25UU
• Diameter: 25mm (on which bearing slides)
• Bearing height : 59mm
• Bearing outside diameter: 40mm
• Quantity - 1pcs

• Bore ID: 25mm
• Bearing Type: Radial Self Aligning
• Size : 95x95x40mm
• Mounting Base Hole Diameter : 12mm
• Mounting Base Holes Centre Distance : 70 X 70mm

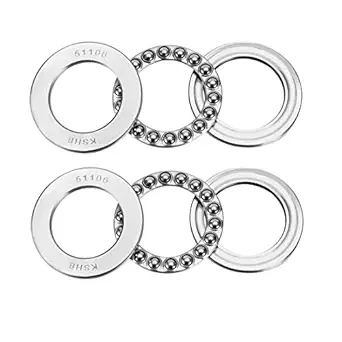

• Single direction thrust ball bearings consist of a shaft washer, a housing washer and a ball and cage thrust assembly. The bearings are separable so that mounting is simple as the washers and the ball and cage assembly can be mounted separately.
• Bearing ID: 30mm, OD: 47mm; Height: 11mm
• Single direction thrust ball bearings, as their name suggests, can accommodate axial loads in one direction and thus locate a shaft axially in one direction. They must not be subjected to any radial load.
• Basic load ratings: Dynamic: 20.6 kN, Static: 47 kN; Speed ratings: Reference speed: 4300 r/min, Limiting speed 6700 r/min
• Package include: 2 x 51106 Axial Thrust Bearing

• Model: LM16UU
• Diameter: 16mm (on which bearing slides)
• Bearing Length: 37mm
• Bearing Outside Diameter: 28mm
• Quantity: 4pcs

• Model : 696ZZ
• Diameter : 6mm (on which bearing rotates)
• Bearing height : 5mm
• Bearing inside diameter : 6mm
• Bearing outside diameter : 15mm

• Single direction thrust ball bearings consist of a shaft washer, a housing washer and a ball and cage thrust assembly. The bearings are separable so that mounting is simple as the washers and the ball and cage assembly can be mounted separately.
• Bearing ID: 35mm, OD: 52mm; Height: 12mm
• Single direction thrust ball bearings, as their name suggests, can accommodate axial loads in one direction and thus locate a shaft axially in one direction. They must not be subjected to any radial load.
• Basic load ratings: Dynamic: 22.1 kN, Static: 49.5 kN; Speed ratings: Reference speed: 4000 r/min, Limiting speed 6000 r/min
• Package include: 1 x 51107 Axial Thrust Bearing

• Model: 608ZZ
• Diameter: 8mm (on which bearing rotates)
• Bearing height : 7mm
• Bearing outside diameter: 22mm
• Quantity - 10pcs

• Model : P000
• Shaft Diameter : 10mm (for which bearing is used)
• Size : 67x36x17mm
• Mounting Base Hole Diameter : 7mm
• Mounting Base Holes Centre Distance : 53mm

• Model: PHS8-R
• Threads Size: Metric M8
• Threads Pitch: 1.25mm
• Threads Direction: Right Hand Side
• Bearing Inner Diameter: 8mm

• Model : SC25UU
• Diameter: 25mm (on which bearing slides)
• Holes tapped with M8 for screwing it with M8 screws
• Weight : 600 g
• Application: 3D Printer, CNC, DIY Projects & Anywhere, where 20mm rod is used for sliding.

• Single direction thrust ball bearings consist of a shaft washer, a housing washer and a ball and cage thrust assembly. The bearings are separable so that mounting is simple as the washers and the ball and cage assembly can be mounted separately
• Bearing ID: 10mm, OD: 24mm; Height: 9mm
• Single direction thrust ball bearings, as their name suggests, can accommodate axial loads in one direction and thus locate a shaft axially in one direction. They must not be subjected to any radial load.
• Basic load ratings: Dynamic: 9.95 kN, Static: 15.3 kN; Speed ratings: Reference speed 9500 r/min, Limiting speed 13000 r/min
• Package include: 2 x 51100 Axial Thrust Bearing

• Model : 699ZZ
• Diameter : 9mm (on which bearing rotates)
• Bearing height : 6mm
• Bearing inside diameter : 9mm
• Bearing outside diameter : 20mm

• Model: 624ZZ
• Diameter: 4mm (on which bearing slides)
• Bearing height : 5mm
• Bearing outside diameter: 13mm
• Quantity - 5pcs

• Model: 608ZZ
• Diameter: 8mm (on which bearing slides)
• Bearing height : 7mm
• Bearing outside diameter: 22mm
• Quantity - 2pcs

• Model: MR52ZZ
• Bearing Inner Diameter: 2mm
• Bearing Outside Diameter: 5mm
• Bearing Thicknesss: 2.5mm
• Quantity: 10pcs
