Bearings By INVENTO

• Model: LM16UU
• Diameter: 16mm (on which bearing slides)
• Bearing Length: 37mm
• Bearing Outside Diameter: 28mm
• Quantity: 1pcs

• Model: 6003zz
• Bearing Inner Diameter: 17mm
• Bearing Outside Diameter: 35mm
• Bearing Thicknesss: 10mm
• Quantity: 2pcs

• Single direction thrust ball bearings consist of a shaft washer, a housing washer and a ball and cage thrust assembly. The bearings are separable so that mounting is simple as the washers and the ball and cage assembly can be mounted separately.
• Bearing ID: 25mm, OD: 42mm; Height: 11mm
• Single direction thrust ball bearings, as their name suggests, can accommodate axial loads in one direction and thus locate a shaft axially in one direction. They must not be subjected to any radial load.
• Basic load ratings: Dynamic: 19.7 kN, Static: 37 kN; Speed ratings: Reference speed: 4800 r/min, Limiting speed 7100 r/min
• Package include: 1 x 51105 Axial Thrust Bearing

• Model: LM30UU
• Diameter: 30mm (on which bearing slides)
• Bearing height: 68mm
• Bearing inside diameter: 30mm, Outside Diameter: 47mm
• Package Include: 2 x LM30UU

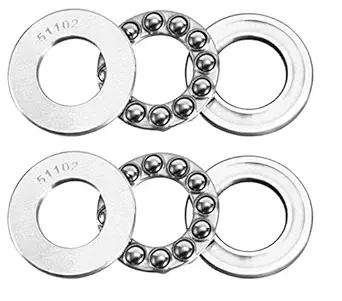

• Single direction thrust ball bearings consist of a shaft washer, a housing washer and a ball and cage thrust assembly. The bearings are separable so that mounting is simple as the washers and the ball and cage assembly can be mounted separately
• Bearing ID: 15mm, OD: 28mm; Height: 9mm
• Single direction thrust ball bearings, as their name suggests, can accommodate axial loads in one direction and thus locate a shaft axially in one direction. They must not be subjected to any radial load.
• Basic load ratings: Dynamic: 10.6 kN, Static: 16.8 kN; Speed ratings: Reference speed: 6300 r/min, Limiting speed 9500 r/min
• Package include: 8 x 51102 Axial Thrust Bearing

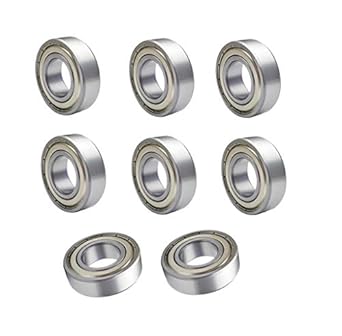

• Model: 6001zz
• Bearing Inner Diameter: 12mm
• Bearing Outside Diameter: 28mm
• Bearing Thicknesss: 8mm
• Quantity: 8pcs

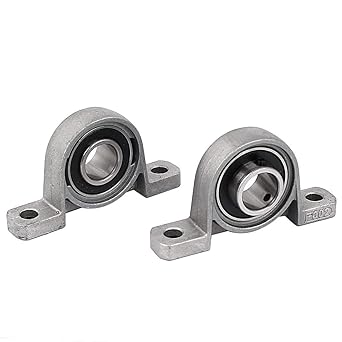

• Model : P001
• Diameter : 12mm
• Package:- 1pc Block Ball Bearing

• Model : 625ZZ
• Diameter : 5mm (on which bearing rotates)
• Bearing height : 5mm
• Bearing inside diameter : 5mm
• Bearing outside diameter : 16mm

• Model: LM10UU
• Diameter: 10mm (on which bearing slides)
• Bearing height : 29mm
• Bearing outside diameter: 19mm
• Quantity - 4pcs

• Model: 6903zz
• Bearing Inner Diameter: 17mm
• Bearing Outside Diameter: 30mm
• Bearing Thicknesss: 7mm
• Quantity: 2pcs

• Model : 684ZZ
• Diameter : 4mm (on which bearing rotates)
• Bearing height : 4mm
• Bearing inside diameter : 4mm
• Bearing outside diameter : 9mm

• Single direction thrust ball bearings consist of a shaft washer, a housing washer and a ball and cage thrust assembly. The bearings are separable so that mounting is simple as the washers and the ball and cage assembly can be mounted separately
• Bearing ID: 15mm, OD: 28mm; Height: 9mm
• Single direction thrust ball bearings, as their name suggests, can accommodate axial loads in one direction and thus locate a shaft axially in one direction. They must not be subjected to any radial load.
• Basic load ratings: Dynamic: 10.6 kN, Static: 16.8 kN; Speed ratings: Reference speed: 6300 r/min, Limiting speed 9500 r/min
• Package include: 2 x 51102 Axial Thrust Bearing

• Model: 624ZZ
• Diameter: 4mm (on which bearing slides)
• Bearing height : 5mm
• Bearing outside diameter: 13mm
• Quantity - 2pcs

• Model: 6001zz
• Bearing Inner Diameter: 12mm
• Bearing Outside Diameter: 28mm
• Bearing Thicknesss: 8mm
• Quantity: 2pcs

• Model : FL002
• Shaft Diameter : 15mm (for which bearing is used)
• Size : 66x41x17mm
• Mounting Base Hole Diameter : 7mm
• Mounting Base Holes Centre Distance : 53mm

• Model: 608ZZ
• Diameter: 8mm (on which bearing slides)
• Bearing height : 7mm
• Bearing outside diameter: 22mm
• Quantity - 5pcs
