Electricals - Energy Meters Products

• Low power consumption High insulation and dielectric strength Poly-carbonate enclosure which is UV protected, flame retardant .Material: Plastic
• 1 phase,2 wire, Accuracy Class: 1.0, Conformation with IS:13779, Current: 5 30 Ampere, Reference voltage: 240 Volts, Reference frequency: 50 Hz
• Export Quality with Multifunction Display: Digital LCD display with back-light
• Package contents: 1 Single phase 2 wire electrical energy KWH meter
• Copper connections Surge resistant and tamper proof with magnetic shielding Sustained accuracy over long period of time

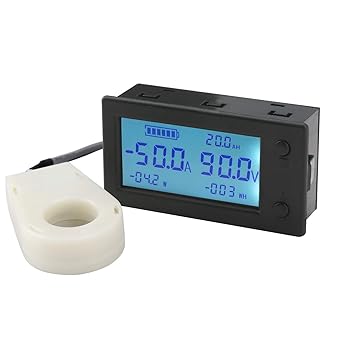

• Multi-function Meter: - This device measures 6 different readings like battery charge percentage and AH of remaining battery capacity, DC bidirectional current, DC voltage, DC power and DC accumulated electric energy.
• App Connectivity: - Download the app "WBMS" by scanning code from the manual provided and with the help of bluetooth connection you can check readings and adjust settings via smartphone.
• LCD Display: -Large display with back-lit makes the readings clear in dark surroundings.
• Multi-Protection Level: -With alarm flashing function, you can set the limit by yourself. Over-voltage, low-voltage and over-current alarm are few functions along with low battery alarm that safeguard the device and improves functionality.
• Application: - Suitable for all kinds of batteries, such as Lead-acid batteries, Lithium Polymer batteries, lithium ion, lithium iron phosphate batteries and etc.

• Type:1 phase, Sub Meter
• Monitors Electrical energy Consumption in single phase
• LED Backlight Display
• Ideal for consumer premises
• Low power consumption High insulation and dielectric strength Poly-carbonate enclosure which is UV protected, flame retardant

• Model: PZEM-004T 1. electrical parameter measurement function (voltage, current, active power). 2. The power button clear function. 3. Power-down data storage function (cumulative power down before saving). 4. PC PC display function (display voltage, current, active power). 5. The serial communication function (comes with TTL serial interface, via various terminals communicate with the adapter plate, read, and set the parameters).
• 1. Power: meas range 0 ~ 22kW 0 ~ 10kW within display format of 0.000 to 9.999; Within 10 ~ 22kW display format 10.00 ~ 22.00. 2. Power: measrange 0 ~ 9999kWh 0 ~ 10kWh within display format of 0.000 to 9.999; 10 ~ 100kWh within display format of 10.00 to 99.99; 100 ~ 1000kWh within display format of 100.0 to 999.9; 1000 ~ 9999kWh and above display format from 1000 to 9999. 3. Voltage Range 80 ~ 260VAC Display Format 110.0 ~ 220.0. 4. Current meas range 0 ~ 100A Display Format 00.00 to 99.99.
• Electricity clear method: Press ZERO key five seconds, then release the button! Press again to clear the key, the data is cleared and exit charge cleared, cleared so far completed.>>Serial Communication if you want a device with a USB or RS232 (such as computers) to communicate, then you need to be equipped with different TTL adapter hardware board (USB communication needs with TTL to USB adapter plate;
• 1. Connect the hardware according to the wiring diagram. 2. Connect the line after a good first select the communication port of the PC software module supports communication port COM2 COM3 COM4, through the Device Manager to view, if not more than a few ports you need to modify the port over. E. Considerations 1. This module is suitable for indoor, not outdoor use. 2. the applied load should not exceed the rated power. 3. The wiring can not be wrong.
• 1. Working voltage: 80 ~ 260VAC 2. Test voltage: 80 ~ 260VAC 2. Rated power: 100A / 22000W 3. Working Frequency: 45-65Hz 4. Measurement accuracy: 1.0

• Stepper Motor counter display
• Rating : 5-20Amps
• ISI Marked

• Used for net metering in single phase
• Active and apparent forwarded energy registers
• Maximum demand (kW/kVA)
• time-of-use (TOU) registers
• Midnight and load survey data recording

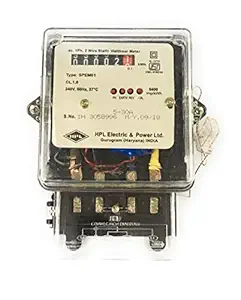

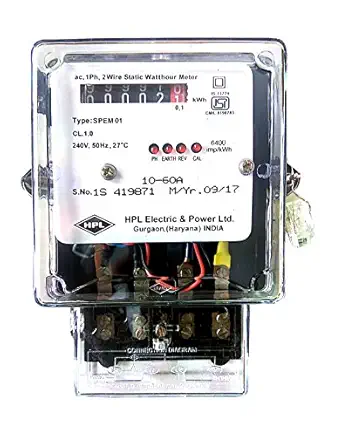

• HPL SINGLE PHASE 2 Wire 10-60 A Electronic Energy KWH Meter COUNTER DISPLAY
• Range- 10-60A
• Tamper indications provided
• Tamper indications provided
• Anti Tamper Feature

• 1 phase,2 wire, Accuracy Class: 1.0, Conformation with IS:13779, Current: 10 60 A, Reference voltage: 240 Volts, Reference frequency: 50 Hz
• Displays various electrical parameters like electric consumption (Kwh), Voltage(V), Current(A), Power-factor(PF), Load (kw), Frequency(Hz) on press of button
• Export Quality with Multifunction Display: Digital LCD display with back-light
• Sustained accuracy over long period of time
• Low power consumption High insulation and dielectric strength Poly-carbonate

• Two wire design, can directly test the battery
• Made of high quality chip, stable performance.
• 100% brand new and high quality.
• The external shell can prevent it from damage
• It has the reverse connection protection function

• Type of Product : Sub Energy Meter With Counter type Display (Class -1)
• Phase :Single Phase 240 Volt 50Hz
• Rated Current (A) : 5-30 A Applications: Residential,Industrial and Commercial Complexes etc. LT Network
• Accurate energy measurement even in case of phase reversal and/or the load is earthed.
• Brand: HPL Electric & Power Ltd Warranty 1 Years

• 1. Working voltage: 80 ~ 260VAC 2. Test voltage: 80 ~ 260VAC 3. Rated power: 100A/22000W 4. Operating frequency: 45-65Hz 5. Measurement accuracy: 1.0 grade
• 1. Electrical parameter measurement function (voltage, current, active power, energy) 2. Overload alarm function (over power alarm threshold, backlight and power flashing to alarm). 3. Power alarm threshold preset function (can set power alarm threshold). 4. The reset function of energy key. 5. Store data when power off. 6. Large-screen LCD (display voltage, current, active power, energy at the same time) 7. Backlight function.

• Display Type: LCD with Backlight
• Electrical Connection: 1Ø - 2W, 3Ø - 3W, 3Ø - 4W
• Type of Output: Two Pulse Outputs
• Communication Protocol: RS485 and MODBUS RTU
• Size: 70 x 90mm

• Model Name/Number - EM6400
• Voltage - 3 X 240V || Type - Digital
• Usage/Application - Industrial
• Phase - Three
• Package Contain:- Schneider Energy Meter
