Electricals - Energy Meters Products

• Multi-Functional : - Complete package that is a combination of electrical protection and power monitoring. Adjustable voltage and current protection with kilowatt-hour meter, this product will instantly power off in case of any issue to prevent electrical equipment from being burnt.
• Voltage Protector: - Over and under voltage protection with adjustable range from 100~300V and under voltage protection ranging 90~300V
• Over Current Protection: -Adjustable over current protection that range from 1~65A
• Real Time Monitoring: - Check voltage, current, active power, reactive power, frequency, total energy (kwh) on LCD. Though app you can check the actual reason behind the cut-off with time stamp; also you can check real time and historical energy consumption along with voltage and current reading.
• Remote Control: - Via SmartLife App, you can check the device activity along with time lap anywhere anytime; this will help you keep track of reason behind cutoff

• AC voltage: AC 80.0-300.0V,200.0-450.0V(You should select the suitable type of meter when your making order).AC current: AC 0-99.99A, minimum resolution is 0.01A AC current: AC 0-40.00A, minimum resolution is 0.01A
• power frequency: 45.0Hz-65.0Hz
• power factor : 0.00-1.00PF
• Material:ABS+ electronic components
• Size:79*43*39mm

• 4 in 1 DC Watt Meter: - Check 4 readings, i.e. DC Voltage (0~300V), current (0~300A), power (0~90kW), energy (0~999kWh). With integrated built-in shunt design, the measurement is 99% accurate
• Bidirectional: -You can use it in both ways,"-" sign indicates reverse direction
• Display: -Wide viewing angle and LCD with green back-light offer a clear view for easy reading even in dark surrounding. Back-light can be turned on/off manually.
• Data Storage: - Measured energy data and back-light state are saved when power off. To reset energy data long press the key for 3 seconds.
• Warranty: - The products come with 1 year warranty (To claim warranty contact us via call or whatsapp, number available below in 'Product Information' section.)

• All in 1 : - Complete package that is a combination of all electrical protection and automation required for home. Adjustable voltage, current and leakage protection values with kilowatt-hour meter, this product will instantly power off in case of any issue to prevent electrical equipment from being burnt, also making your home shock proof.
• Voltage Protector: - Over and under voltage protection with adjustable range from 230~300V and under voltage protection ranging 140~210V
• Over Current and Leakage Protection: -Adjustable over current protection that range from 1~63A; leakage protection range from 10~99mA
• Remote Control: - Via SmartLife App, you can check the device activity along with time lap anywhere anytime; this will help you keep track of reason behind cutoff
• Real Time Monitoring: - Though app you can check the actual reason behind the cut-off with time stamp; also you can check real time and historical energy consumption along with voltage and current reading.
• Scheduling: - This device also works as a timer switch where you can automate on off time by setting time interval via app
• Adjustable Nature: -This device comes with the provision of adjusting settings of all types of values as per your requirement.
• Energy Meter: - Keep track of energy consumption with the help of this power meter; on the lighted LED display you can check energy consumed in the form of kilowatt-hour (kWh) also you can check instantaneous power
• Warranty: -The products come with 1 year warranty with call and whatsapp support (for contact information check Product Information?? mentioned below)

• Why do you need this?- To protect your home appliance from damage due to sudden voltage and current fluctuations, and to monitor energy consumption
• Multi-Protection: -This product cover all three protection range i,e Over voltage, under voltage and over load protection with action time of 0.1 sec.
• Range: - Over voltage protection ranging 85~300V, under voltage protection ranging 85~300V and over current protection ranging 1~63A, energy meter 0~9999kWh.
• Auto Reconnect: - In case of voltage fluctuations, the device instantly cut off the power supply. When supply is back to normal, the device automatically reconnect supply within 1~512 sec (adjustable). (You can adjust reconnect time and cut of values as per your requirement)
• Energy Meter: - It is not limited to protecting your home appliance, get real time information of active power (W), total energy(kWh), voltage(V) and current(A) on the LCD were readings are visible even in dark

• Material: Plastic
• Colour: White
• Size (L x B x H): 20 x 20 x 5 cms
• Package contents: 1 Single phase 2 wire electrical energy KWH meter
• Made in India

• SINGLE PHASE TWO WIRE ENERGY METER
• HIGH QUILITY METER
• 6 MONTH DATA STORAGE
• DATA 1YEARS STORE IN METER
• HIGH VOLTAGE PROTECTION

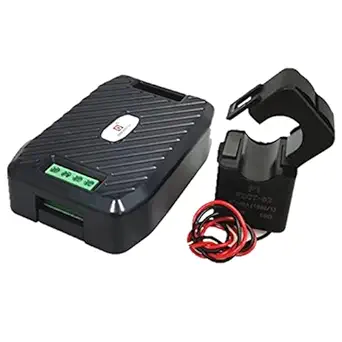

• Communication module with RS485 interface is a perfect device to measure AC power with help of DIY coding mechanism.
• Measure AC voltage (80~260V), current (0~100A), frequency (45~65Hz), active power (0~23kW), energy (0?9999.99kWh) and power factor (0~1).
• You can set active power threshold, which will result in alarm in case the power exceed the threshold range.

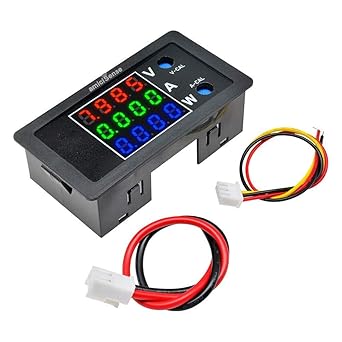

• 3 in 1 energy meter with 0 .28?? LED screen display voltage, current and power at the same time.
• The Voltage range is 0.000~100.0V, Current range is 0.000~9.999A and power range is 0.000W~1000W.
• Large display and colorful readings make it easy to see in dark surroundings.
• High precision 4 digit reading with 1% accuracy (?1)

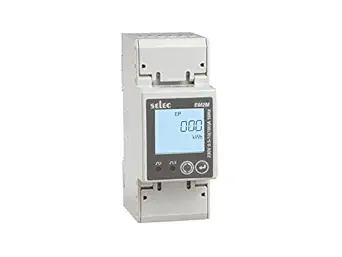

• Single-phase din rail kwh meter is designed to measure single-phase two-wire alternating current of active energy and variable parameters.
• Supply voltage- 220 V 60 HZ
• Din Rail Mount

• Bright LCD display
• Push to Push consumption
• Easy mounting on DIN rail with locking
• Energy recording at current as low as 0.04A
• Reverse current indication.

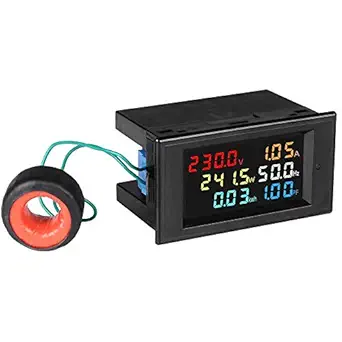

• Large-screen -display voltage, current, active power, energy at the same time
• Store energy data when power off(can be reset to 0). The blue backlight can be turned on/off manually
• Power alarm threshold preset function (can set power alarm threshold)
• The reset function of energy key
• Comes with 6 months warranty

• Self Powered, 100A Direct Connection
• Modbus RTU Communication (RS485) Two Pulse Outputs
• 1Ø Power (Active, Reactive, Apparent)
• 1Ø True RMS (Voltage, Current)
• Bi - Directional Measurement IMP & EXP Max Demand Power

• Self Powered, 100A Direct Connection
• 1Ø True RMS (Voltage, Current)
• 1Ø Power (Active, Reactive, Apparent)
• Bi - Directional Measurement IMP & EXP Max Demand Power
• Modbus RTU Communication (RS485) Two Pulse Outputs

• 1.Volage curent, power, iming. humilyCurrent electical energy,cumulative electrical energy
• 2. Electic energy and üming can be reset
• 3. Electic energy and iming have power down memory uncion
• 4. Rated frequency 45-65Hz
