Water Management System - Water Level Controller Products

• Supports Single Phase AC230V. Suitable for Borewell to Tank set up (Underground or Corporation line water to Overhead tank set up).
• Has LED indications for Power ON, Low/High Voltage, Dry Run, Motor ON. Also has High and Low level LED indications to know the level of overhead tank
• Dry run protection. Low/High Voltage protection. Corrosion free sensors
• Has MANUAL mode and AUTO mode functions. In AUTO mode, AUTO ON and AUTO OFF operation occurs. In MANUAL mode, the motor pump will be constantly running.
• This controller unit has a semi-automatic function (Manual ON and Auto OFF function). Just keep the controller in MANUAL mode for the motor to get switched ON and then change it to AUTO mode for Automatic OFF.

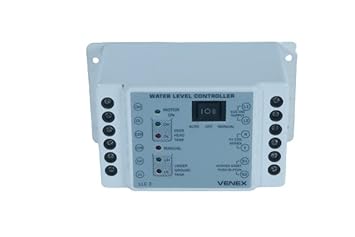

• VENEX Fully Automatic Water Level Controller for three phase motor with 6 SS sansor with dual tank controlling LLC1M
• manufacture support number.9898111264
• fully automatic
• Warranty : 12 month Manufacturer. Warranty Service : Repair or Replacement. Package Contain : 1 Digital Starter with water level controller 6 S.S sensors 1 user manual
• This model is the combination of a digital water level controller
• three phase potential free contect
• suitebale for three phase DOL and star delta penel

• Endurance: =500,000 times of wire and Plastic Body Electrical
• Rated voltage: 250V and Rated current: 8A/Contacts: NO+NC and Weight: 660 g
• Cable: 3 Meter (customized wire length is available)/ A float switch is a device used to detect the level of liquid within a tank. The switch may be used in a pump, an indicator, an alarm, or other devices and Use: Water Level, liquid level Controller
• INSTRUCTIONS, for INSTALLATION Insert the cable in the counter weight (yellow color part), from the conical part and rotate it. Thus causing the plastic ring inserted in the opening to become detached (if necessary this operation can be facilitated with the use of a screwdriver). The ring should then be positioned in the point where it is desired to block the counterweight. Force the counterweight on the ring by rotating it using a slight pressure
• PACK OF - 5

• Installation: Set the counterweight on the power cable to control the level. Connect the electric cable to the electric pump and then fix it inside the water tank. The length of the cable between the point of attachment of the article and the body of the article determines the water level. The power cord terminal should never be inserted into water during installation.
• Instructions for use for the filling operation. Connect the blue control cable to the electric pump and the black wire to the neutral wire as shown in the picture to fill it with water (the brown wire must be waterproof). The electric pump begins to fill with water and when the water in the tank reaches a level stops working.
• Instructions for use for the emptying operation. For the draining operation connect the brown cable to the water pump and the black cable to a neutral cable, as shown in the picture (the blue cable must be insulated). The electric pump stops when the water level reaches a level and if it exceeds this level it starts again to expel water.
• Instructions for use for the installation of the counterweight. Take off (peel) the plastic ring of the counterweight before installation and insert the cable through the ring, then insert the cable through the conical part into the counterweight and set it with a moderate pressure.

• Power On Led Indication Is Provided. Below The Power On Indication, Is The Motor On Led Indication.
• The Motor Gets Switched On Automatically When The Water Level In The Tank Becomes Low. The Tank Starts Filling Up. When The Water Level Reaches The Higher Level, The Motor Automatically Gets Switched Off. Motor On Led Indication Goes Off.
• Auto/Manual Mode Switch Is Provided. Auto Mode: In Auto Mode, Auto On And Auto Off Operation Occurs. In Manual Mode, The Motor Pump Will Be Constantly Running.
• Easy To Operate. Easy To Install.
• 12 Months Warranty.

• DIN rail/ surface mountable - Two tank controller
• Automatic control of starter according to set water level in tanks - LED indications for water level in tank
• Specially designed for 3 phase Borewell Sub. Pump starters
• Available with S.S. sensors/magnetic sensor/float switch
• Engineering grade plastic enclosure

• Surface mountable - Two tank controller
• Automatic control of starter according to set water level in tanks - LED indications for water level in tank
• Specially designed for 1phase openwell/monoset pump
• Available with S.S sensors/magnetic sensors/float switch
• Engineering grade plastic enclosure

• Suitable for three phase motor pump. Any HP. Supports Submersible DOL Starters.
• Suits for borewell motors. Has Dry Run protection. Has Low/High Voltage protection
• Contact type sensors - 5 nos. Dry run sensor - 1 no. will be in the package
• 2 years manufacturer warranty
• Long Life. Easy to install. Advanced Embedded Technology

• IP67 rated, Corrosion Free, High Quality PP(Polypropylene Plastic)-Safe for use in Drinking Water
• Wire Length: 2 Meter each(Total 4 Meter/Sensor), Temp.: 0~80?? , Accuracy: ?2mm
• MECHANICAL SWITCH: Sensor acts as a Mechanical Switch, that means it acts as OFF when it is above Liquid and acts as ON when dipped in liquid.
• APPLICATION: Can be used in Drinking Water Tanks, Freshwater Tanks, Saltwater Tank, Fish Tank, Gardening, Basement Alarms.
• CAUTION: Sensor can be damaged if connected directly to AC supply or Motor directly, load capacity is 10 Watt.

• manufacture support number.9898111264
• Warranty : 12 month Manufacturer. Warranty Service : Repair or Replacement. Package Contain : 1 water level controller 3 S.S sensors
• This model is the a digital water level controller with digital display
• over load and dry run and HV/LV protection
• auto manual function for bypass the devise
• overhead tank operating

• OPERATION MODE : When the water level is lower than the low-level sensor , the water pump is automatically started, & the overhead tank water level rises to a high level, then the water pump is automatically turned off.
• DRY RUN PROTECTION : Advanced embedded technology which stops the pump immediately in case of danger of dry-running. Also there are LED indications for full & empty level for both tanks
• THE SENSOR is durable, strong anti-corrosion stainless, safe and environmental protection without pollution.
• OPERATING VOLTAGE : Single Phase - 230V AC / 50 Hz
• Easy Installation : The installation is simple and convenient, it can be installed with screws or electric box tracks.

• Easily converted from normally open to normally close
• Use them with hydroponics, saltwater tank, freshwater tank, gardening, aquariums for power head control, pet bowls, fish tanks, filtration, heating, pumps, ponds, basement alarms
• Temperature Rating : -10~80?? ;Accurate error: ?2mm ?In the water?;Repeatability: ?1mm ?In the water?

• Suitable for any AC motor that are operated by simple switch/MCB (Single phase motor - Monoblock, Jet Pump, Submersible, etc.)
• Seven Segment Display: Attractive display. for voltage, current, cyclic timer, power on delay, dry run time, password settings and live data. Over Head Tank Level Indication: 25%, 50%, 75% and 100%.
• Cyclic Timer: It has ON Time & OFF Time options. Duration: Maximum 99 Hrs and 59 Minutes.
• Protective features such as Dry Run and L/H voltage, O/U Load, Trip time.
• Password protected and helps for Authorized usage

• Three Nos. Of Sensors
• 2 meter wire attached
• Easy to fit and use
• Anti corrosion Carbon sensor
• Compatible with all water level controllers models

• Motor Wattage: 7A@230V
• AC Single Phase (Upto 1HP)
• Garrenty: 6 Months (WA - 9096761530)
• Sensor with Cable 1 Meter
• Suitable for Self Priming Pumps
• Auto Manual Mode

• 3 Mode Operation: Fully Automatic , Semi Automatic/Auto Off , Manual Mode
• Single pair Cable from Water tank to main unit
• 10 Amp Socket for easy installation.
• Shock proof with Dedicated Filter Technology.
• 24*7 water level indication with 4 level indication and error indication.
• Dry Run protection for Sump/Underground tank users(Can be bypassed with a press of switch)
• Manual Control in all levels to start or stop the pump at any time.
• In case of any Fault very easy to Bypass.
